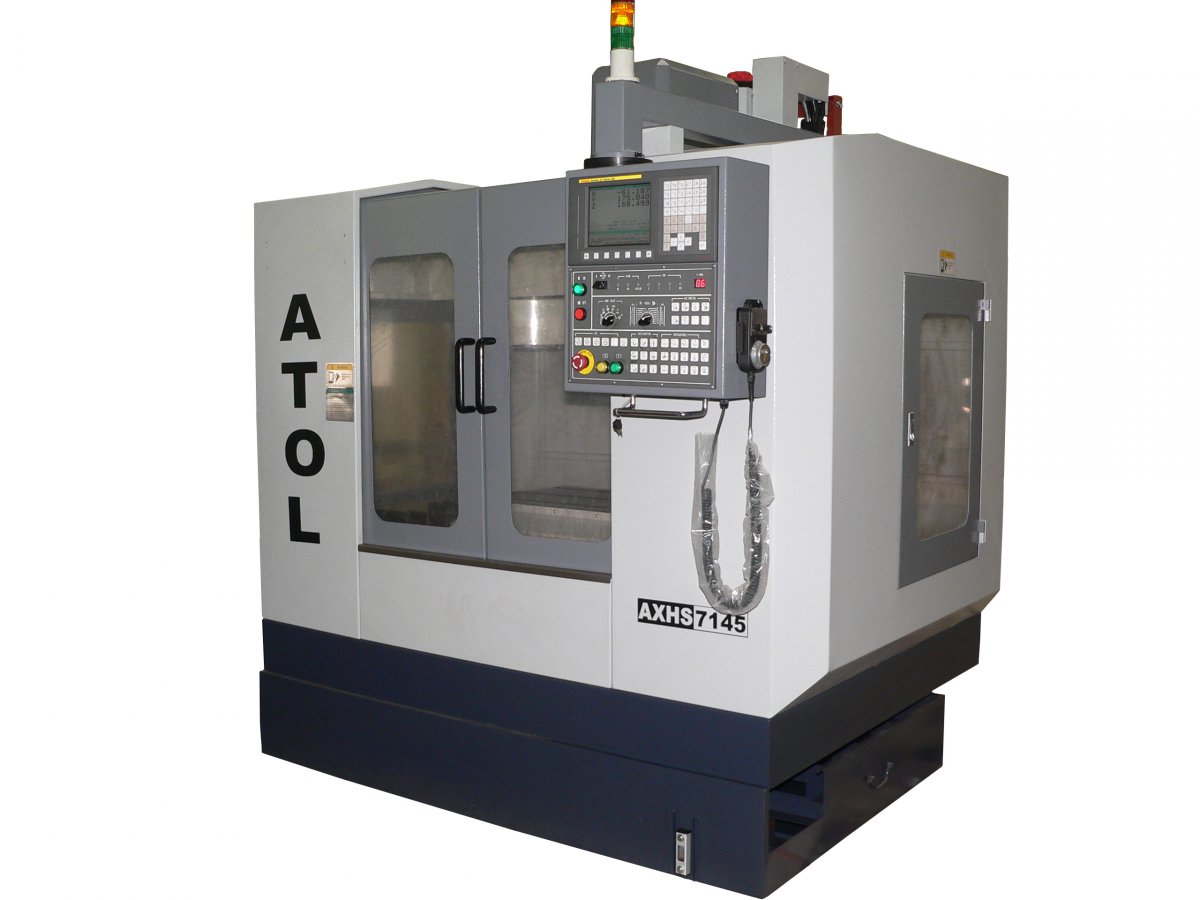

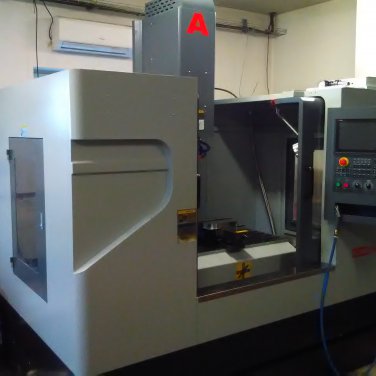

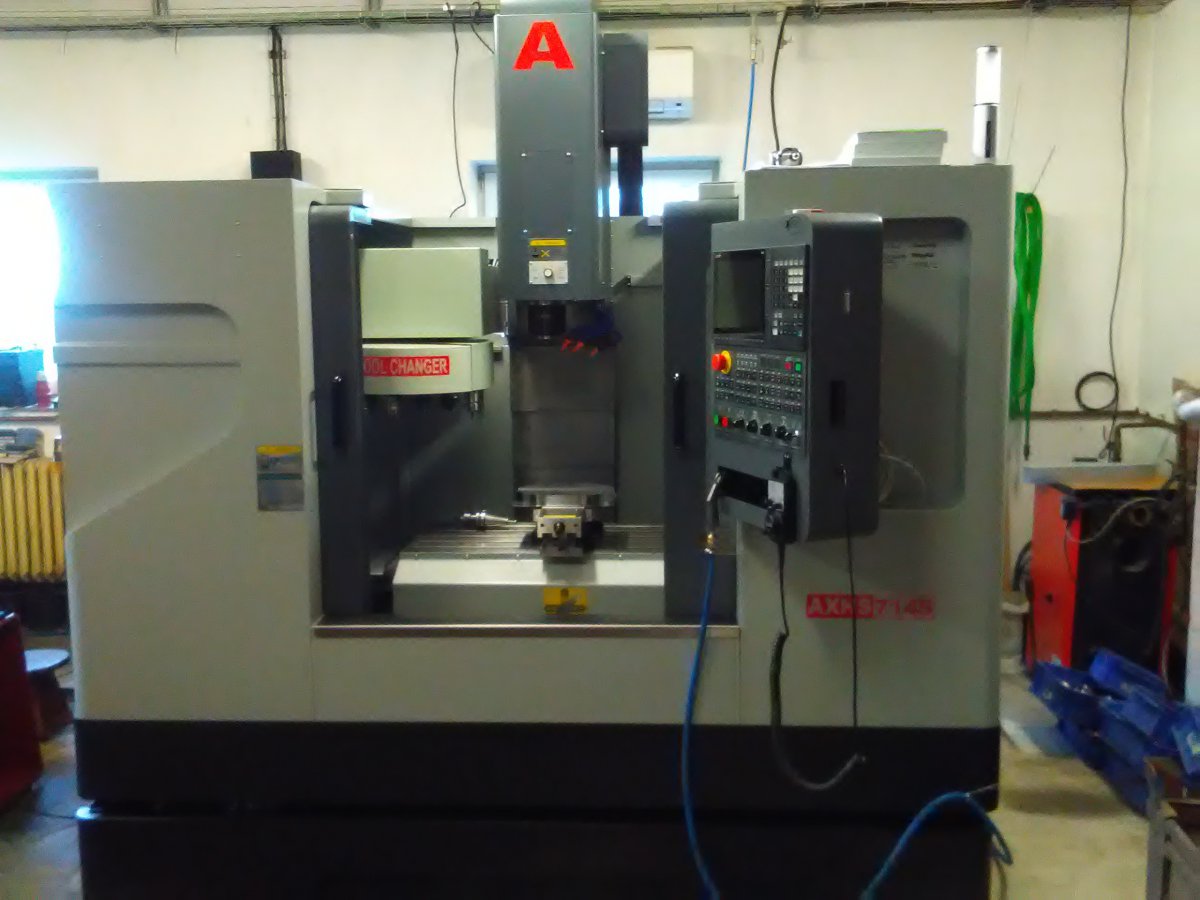

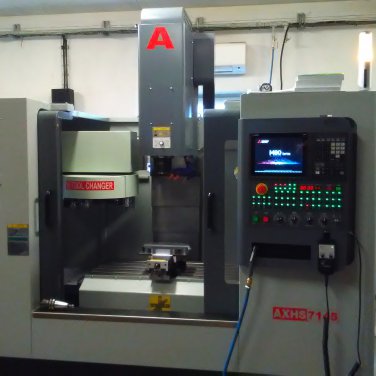

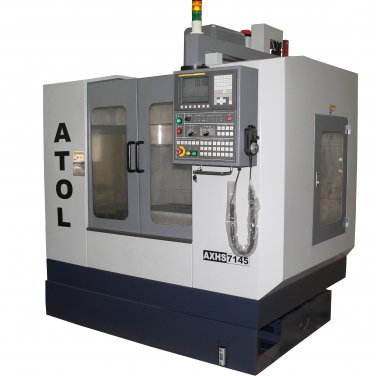

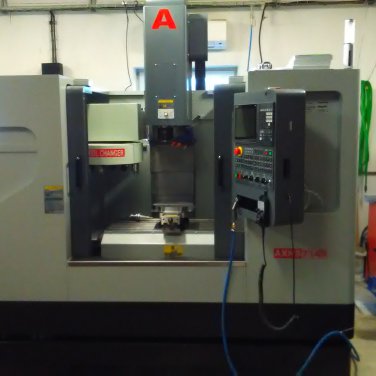

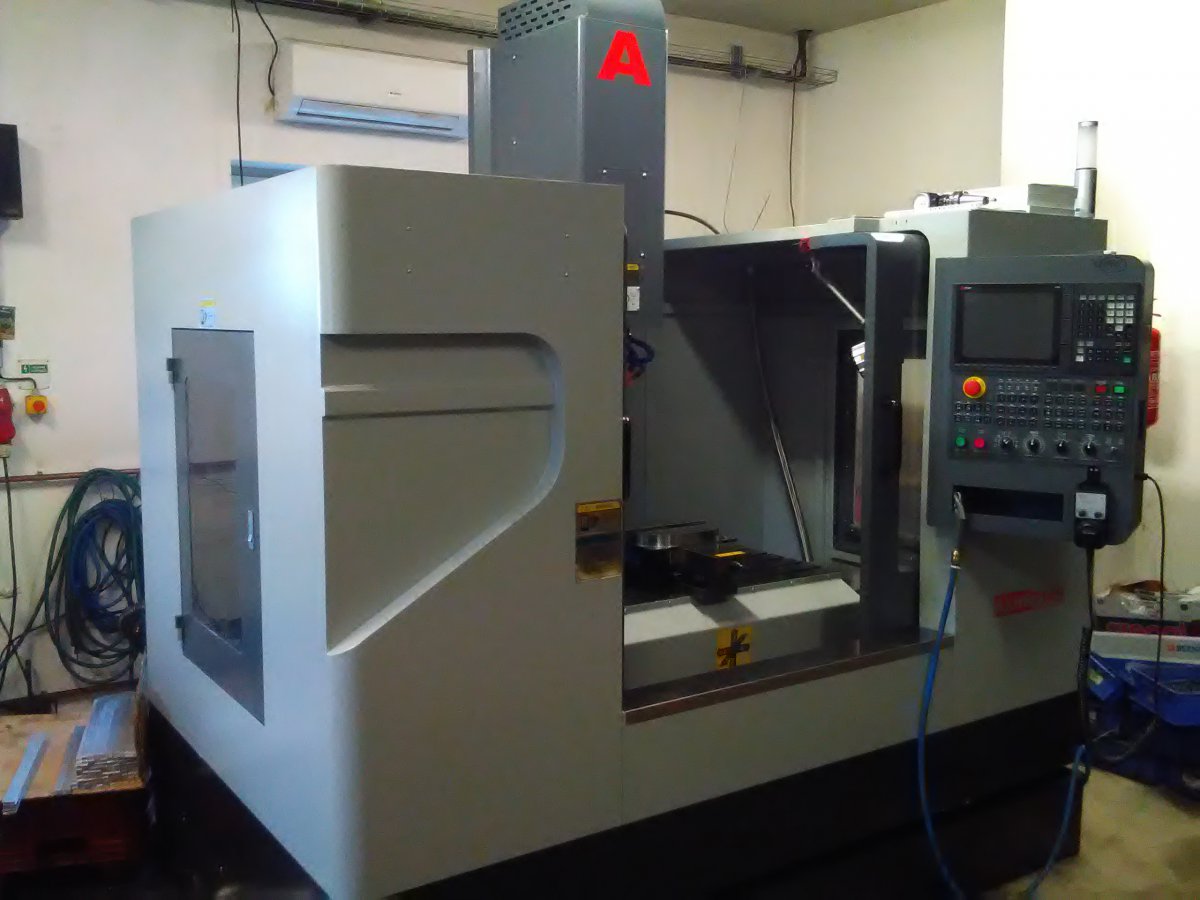

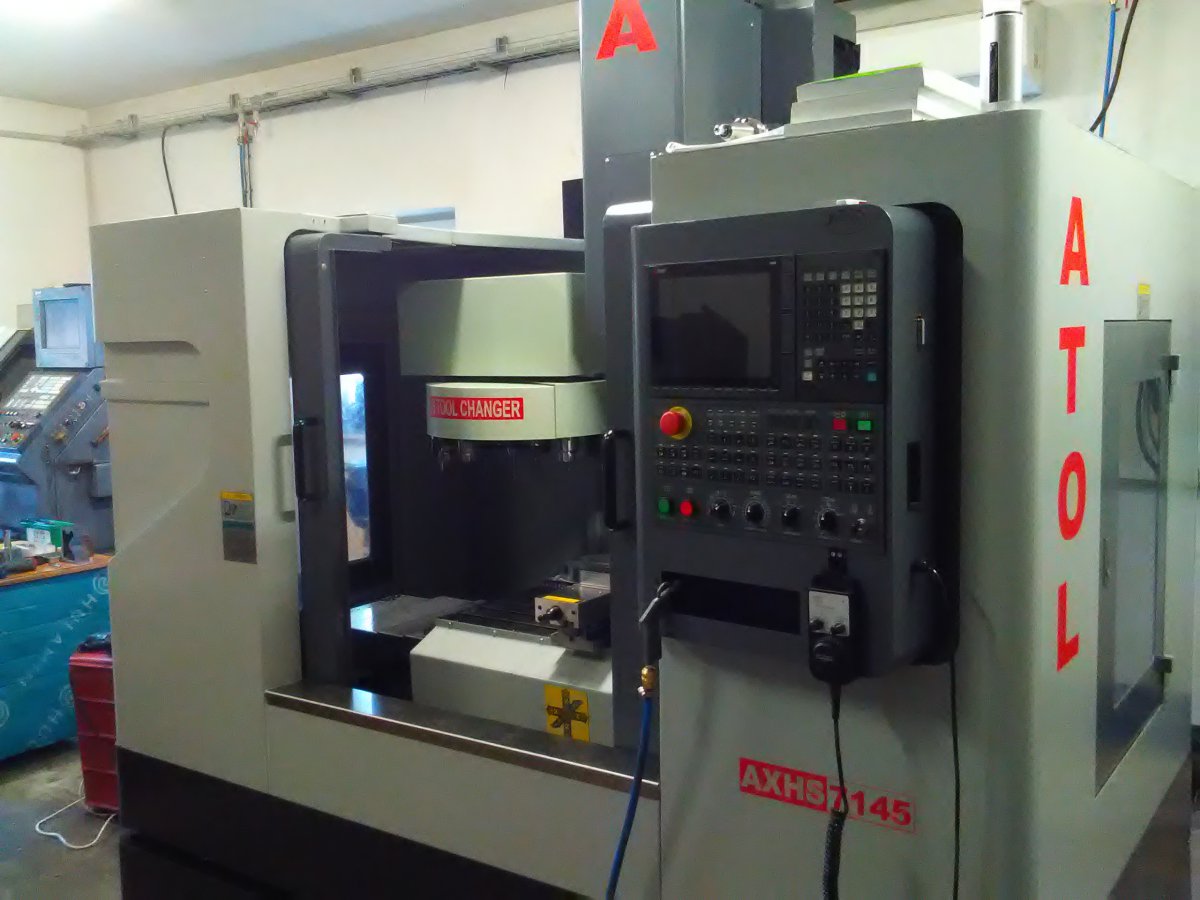

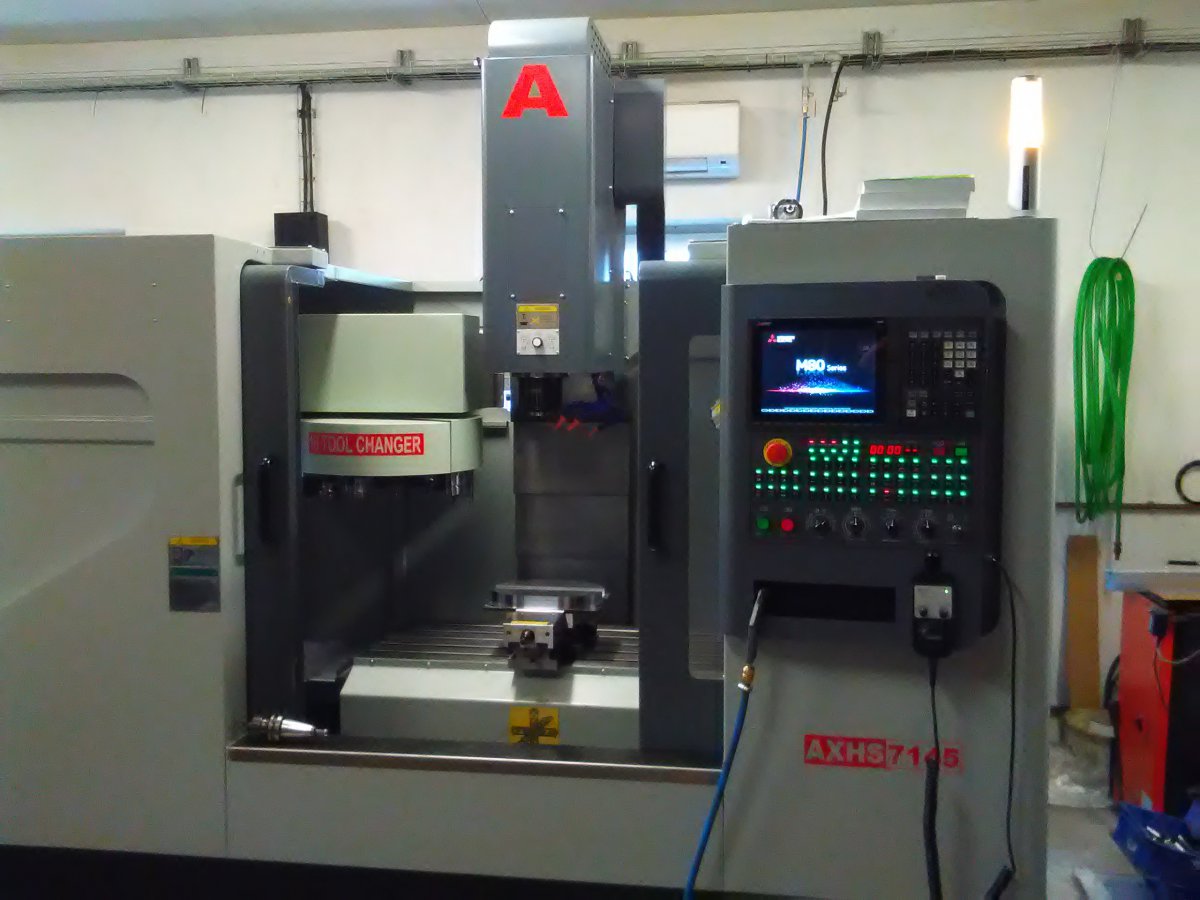

CNC machining center AXHS7145 Fanuc / Siemens

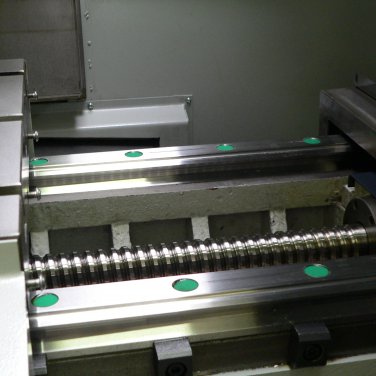

  • Cast iron stand for rigidity and long term accuracy, ball screws

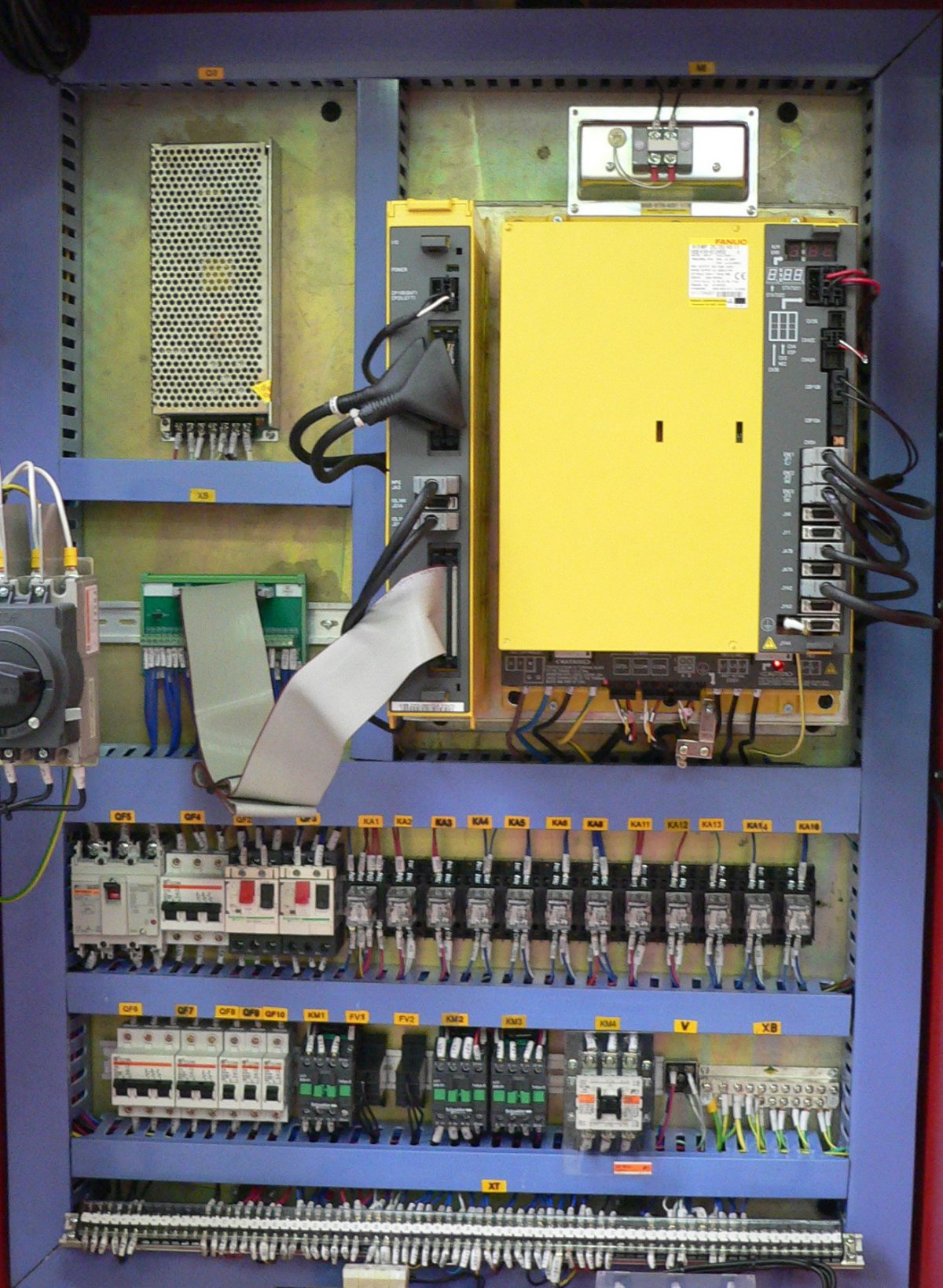

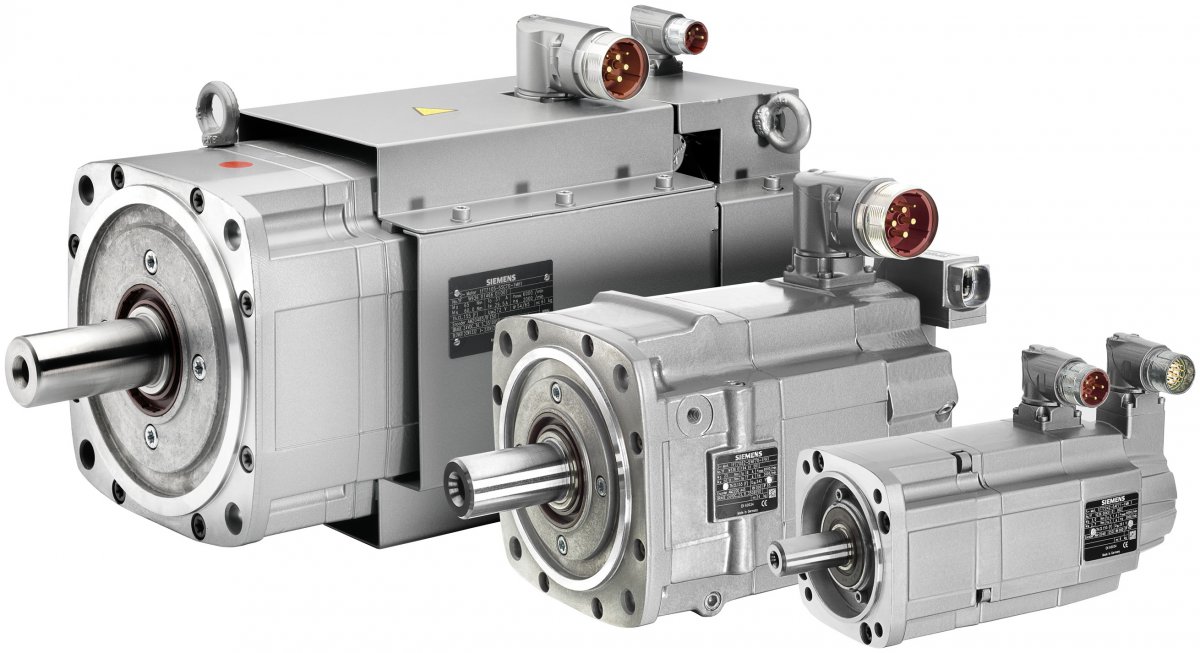

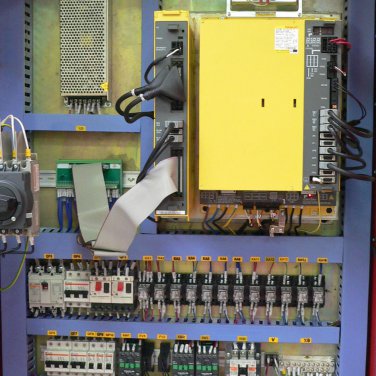

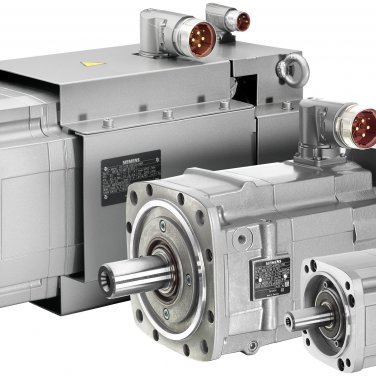

  • servo drives Fanuc / Siemens

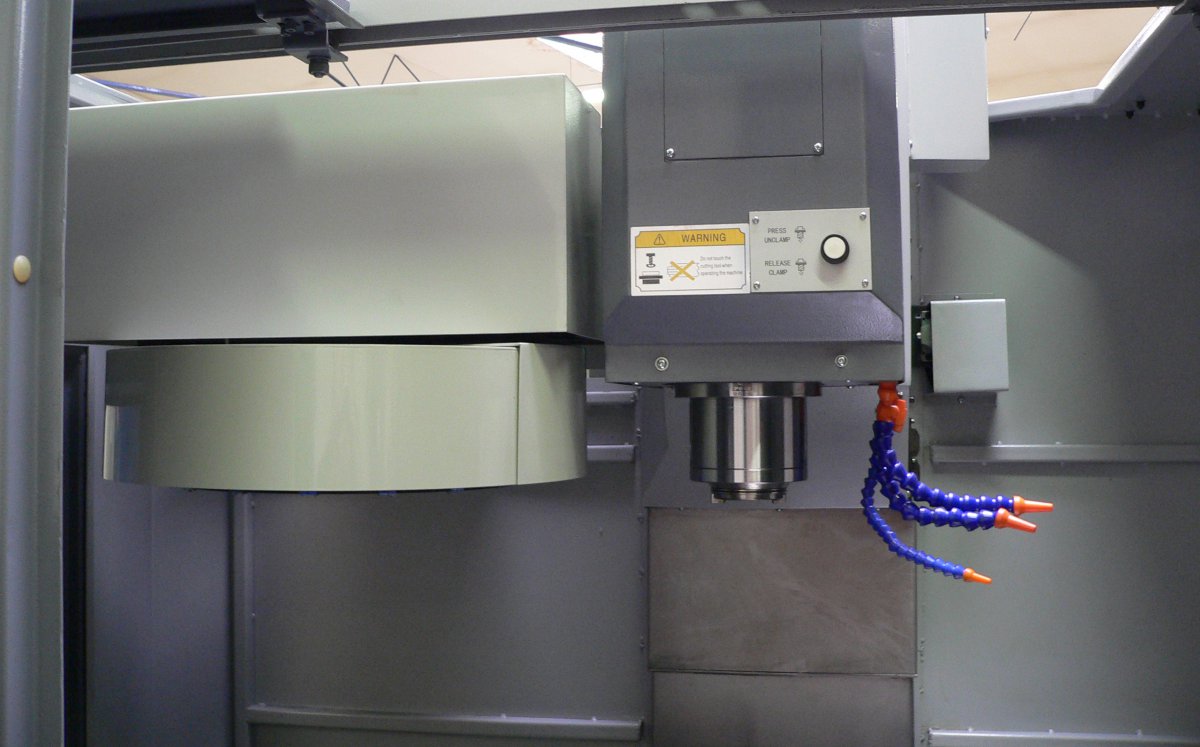

  • spindle drive Fanuc / Siemens

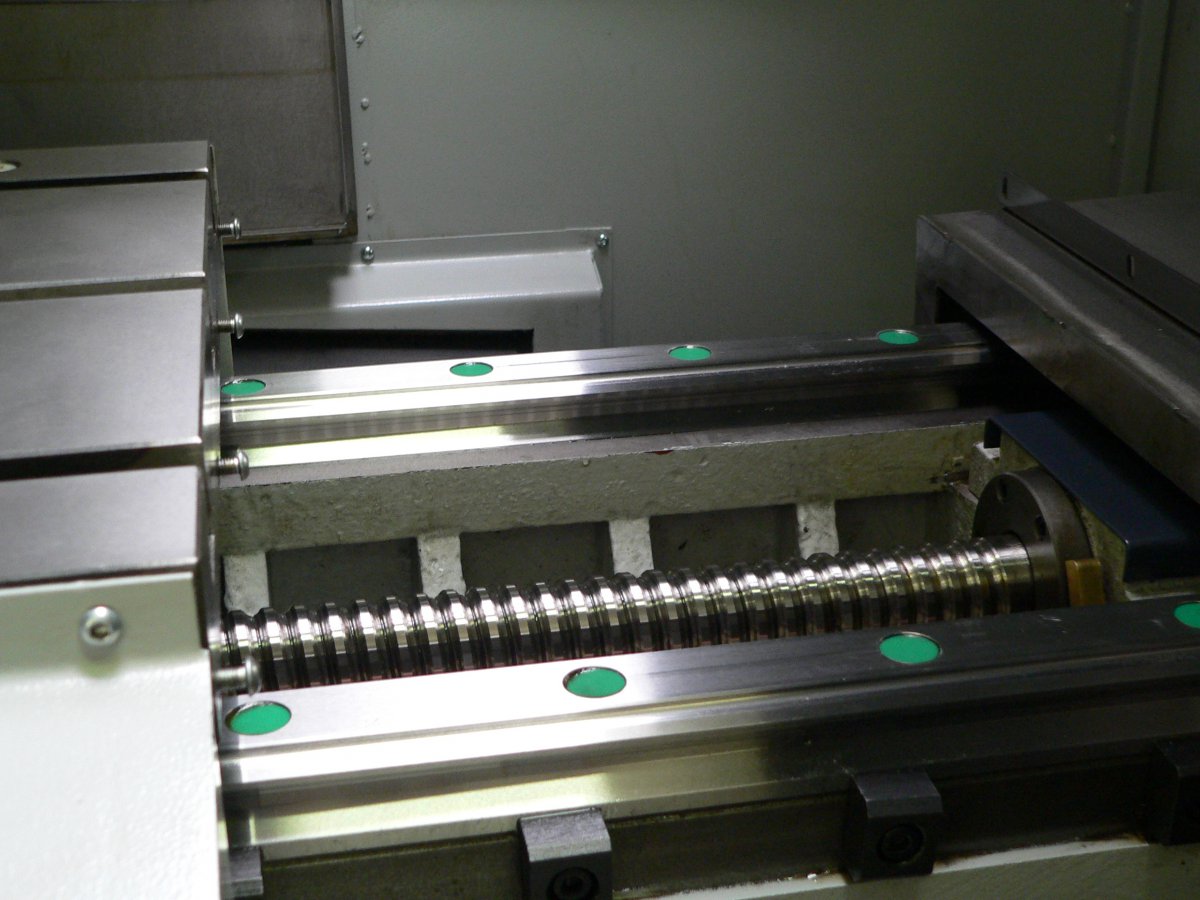

  • linear guide of X, Y, Z axes

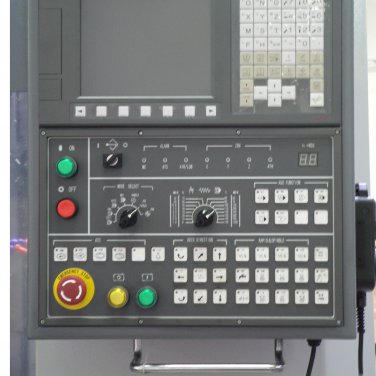

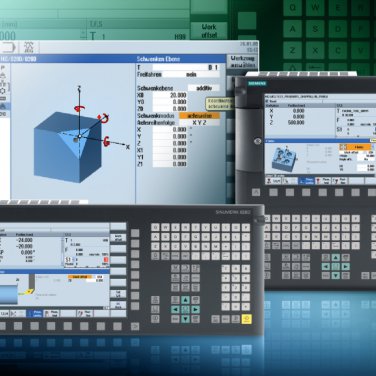

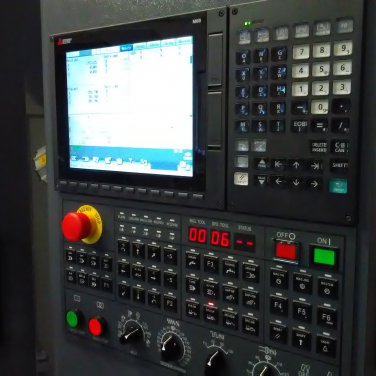

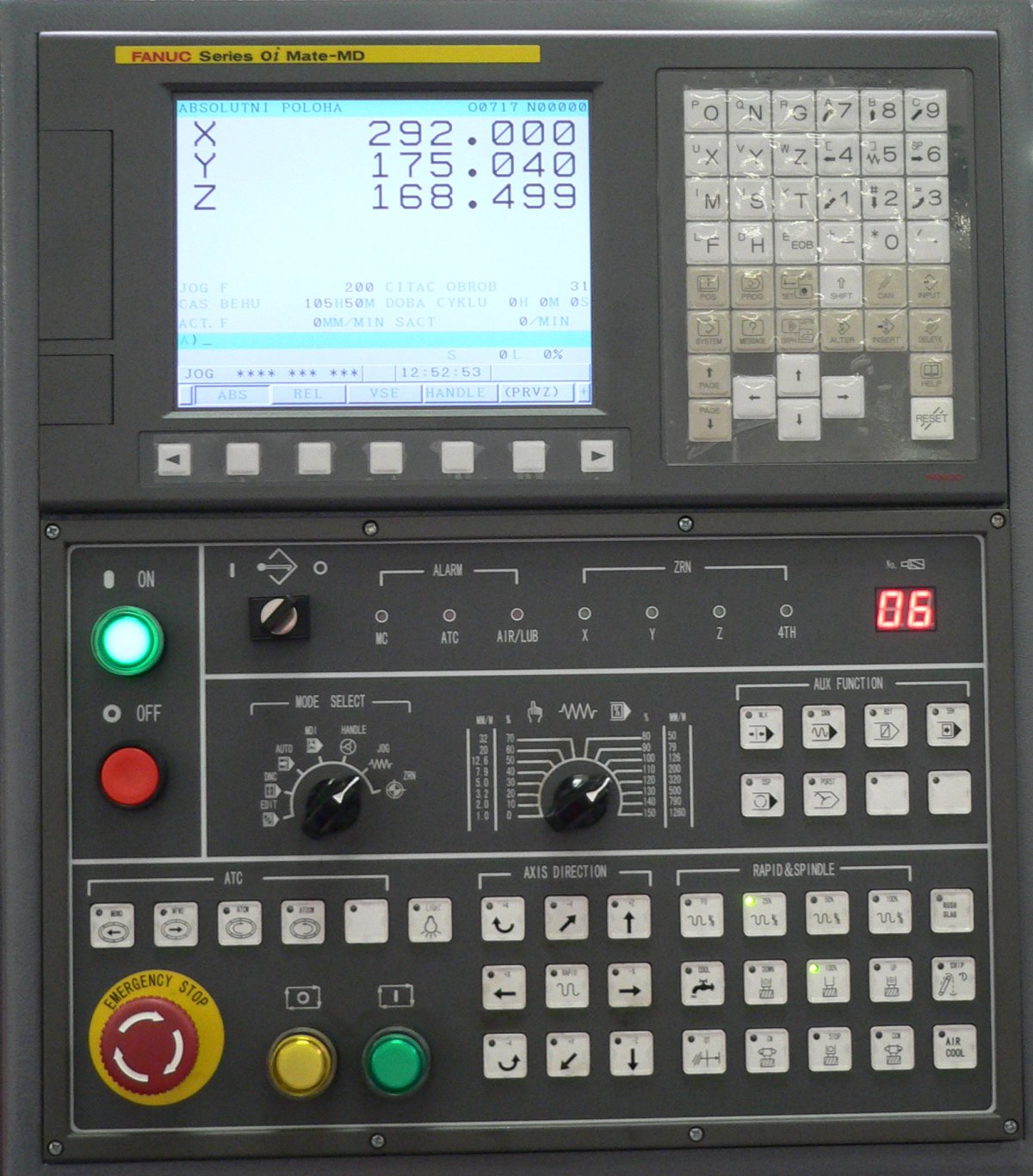

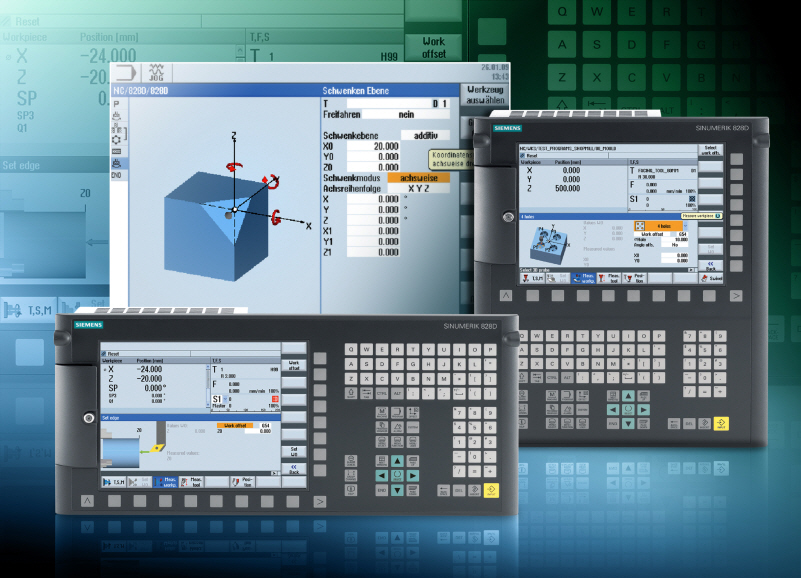

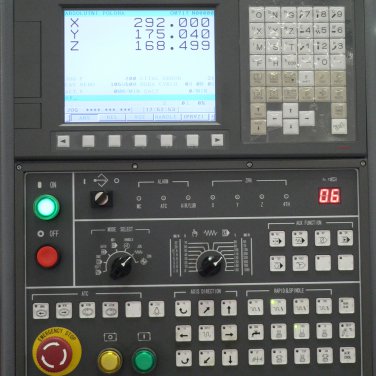

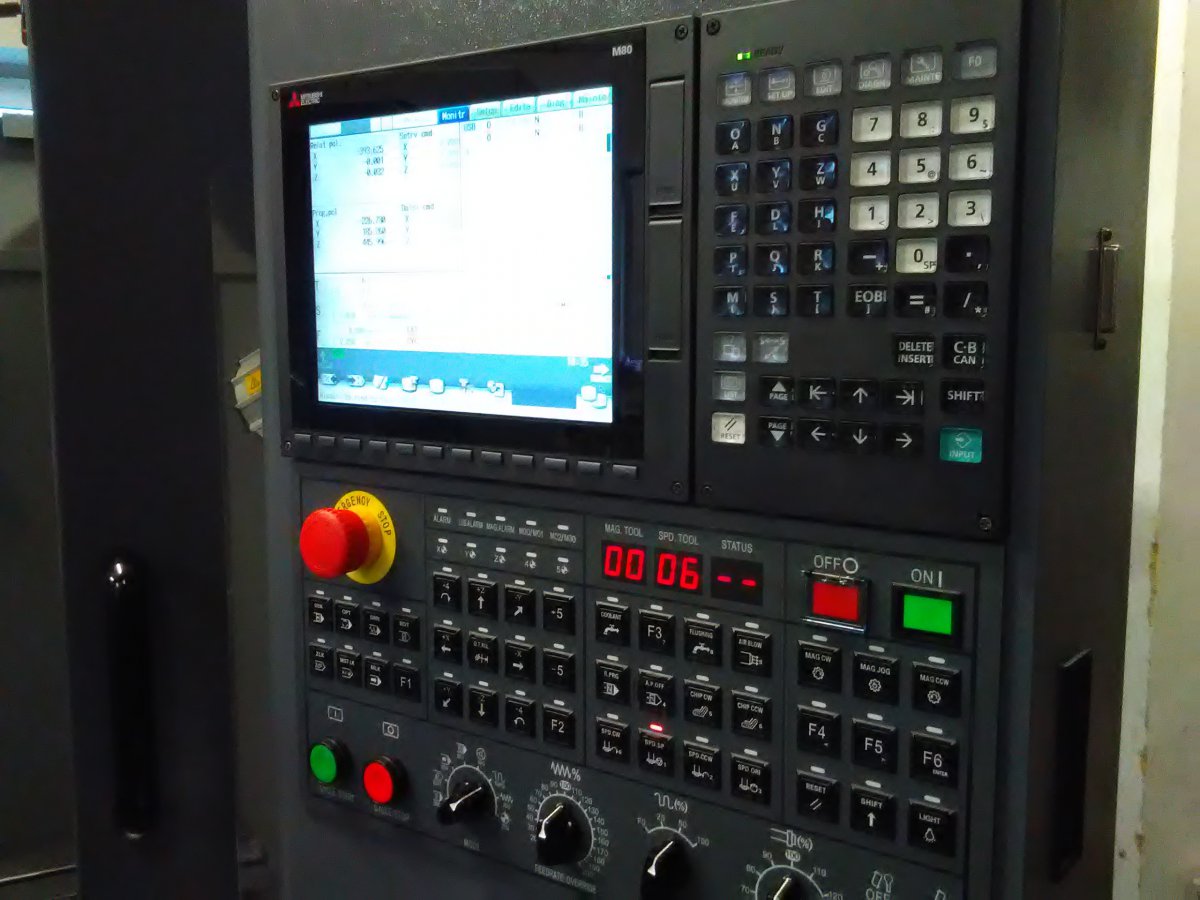

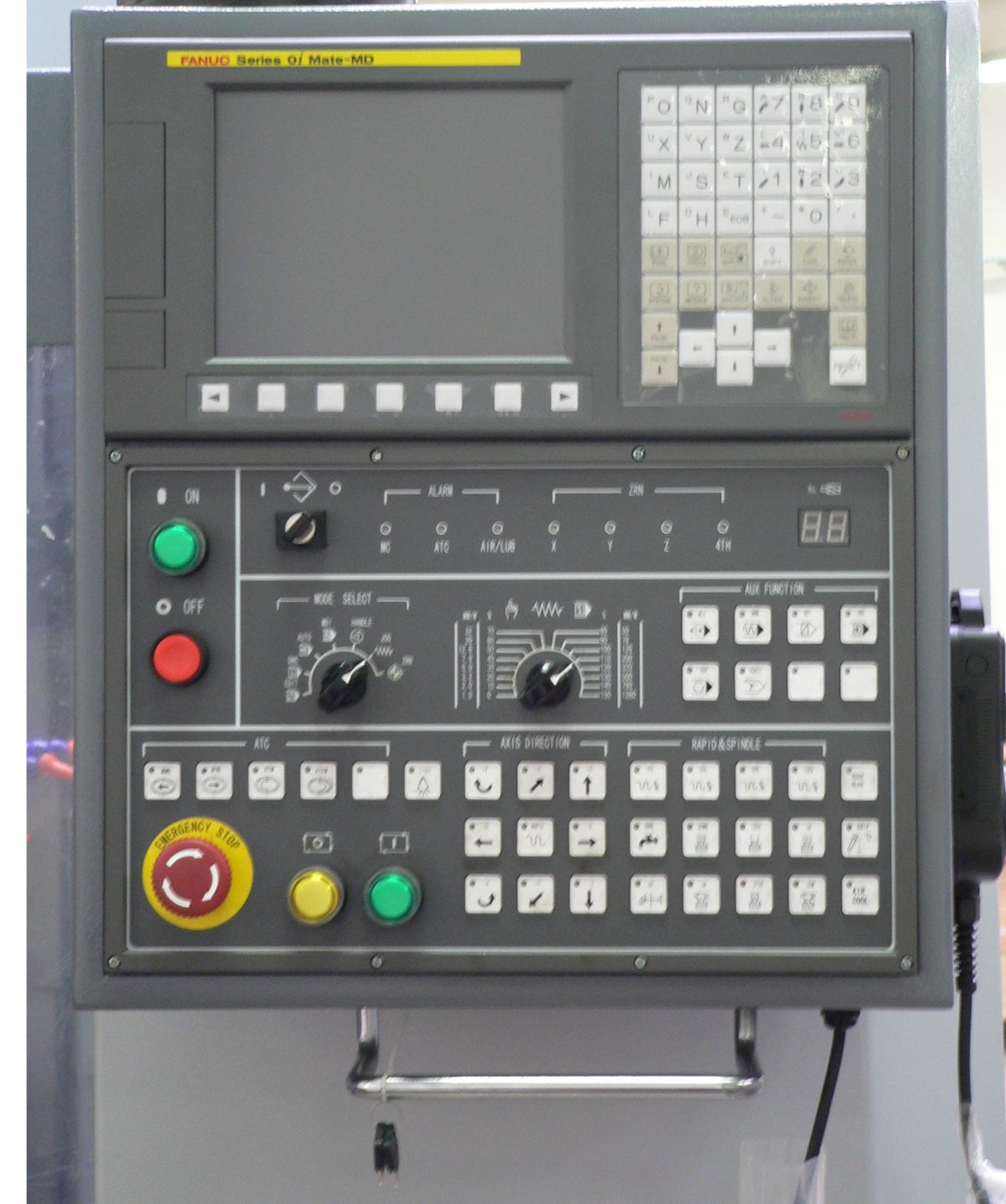

  • Fanuc 0i mate MD CNC system / Siemens 828D

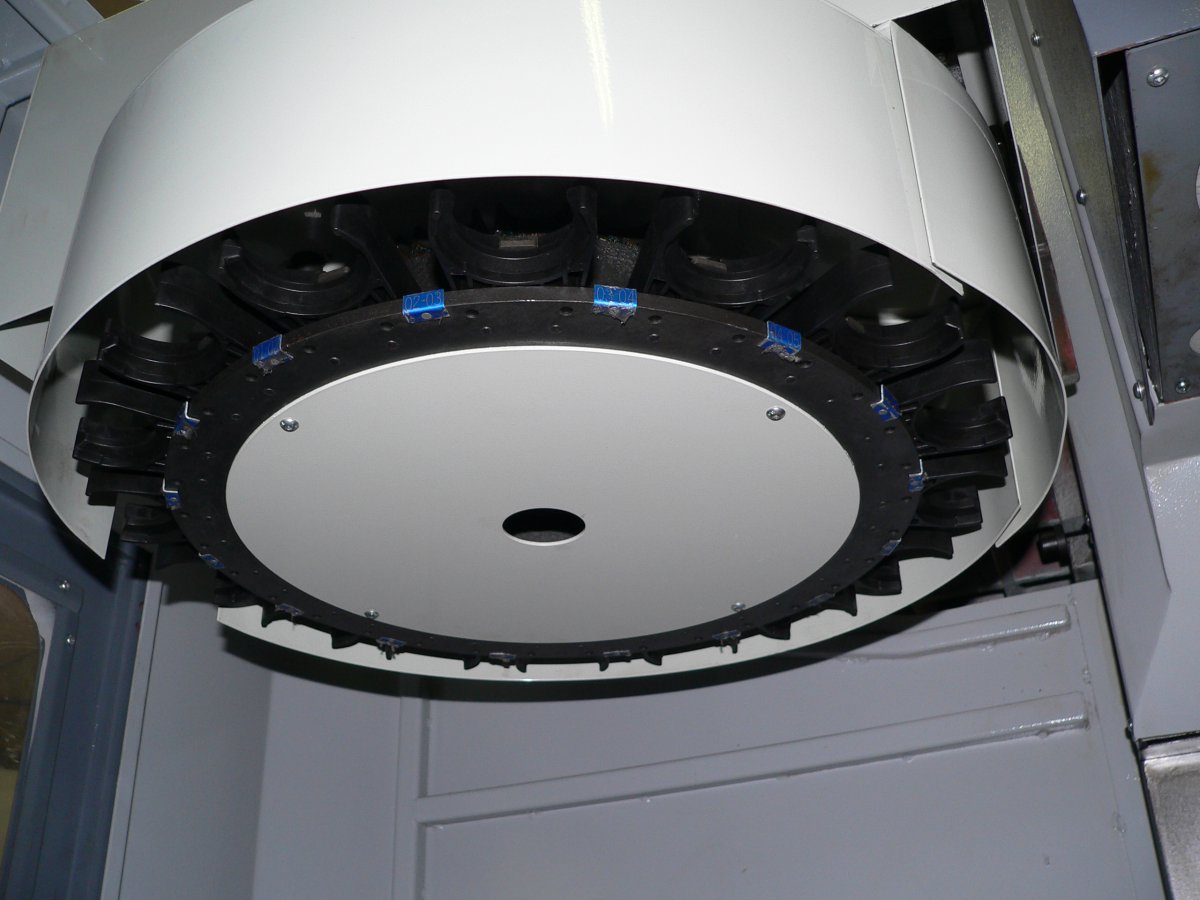

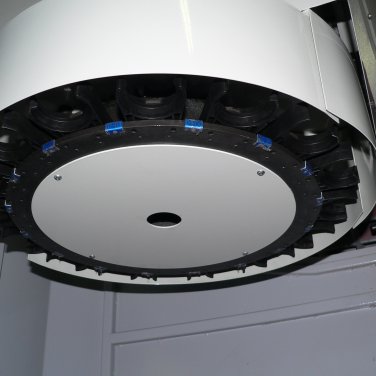

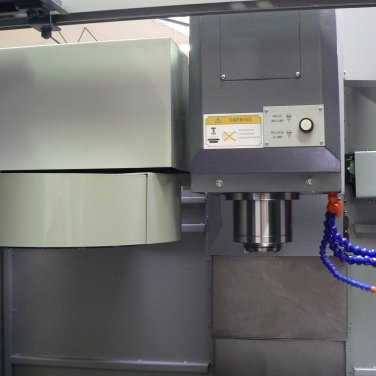

  • magazine umbrella type (16 tools)

Standard version

  • Fanuc 0i MateMD CNC system / Siemens 828D

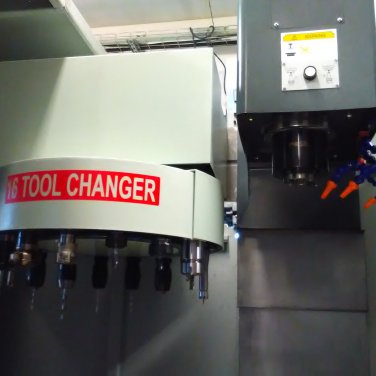

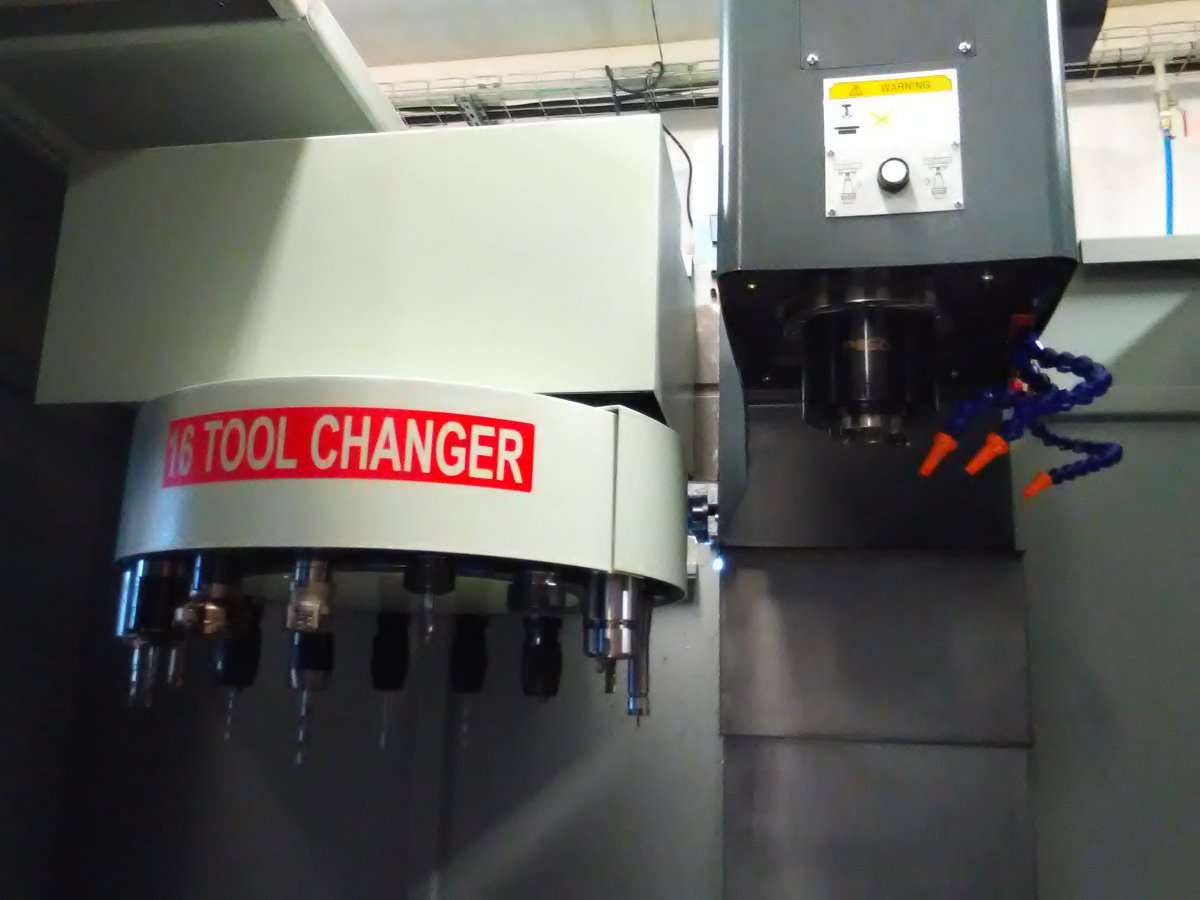

  • Umbrella type magazine with 16 tool posts

Options

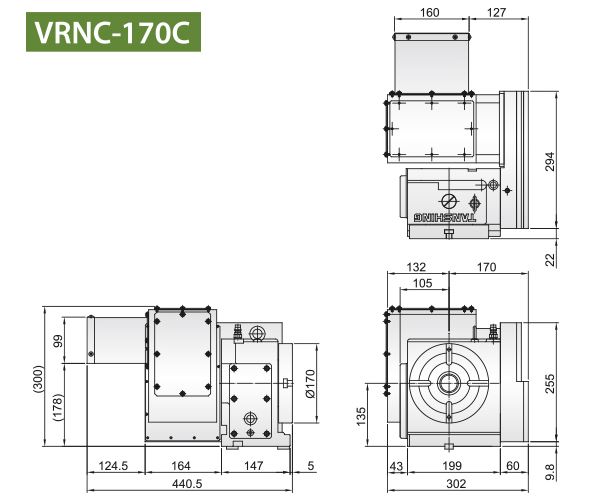

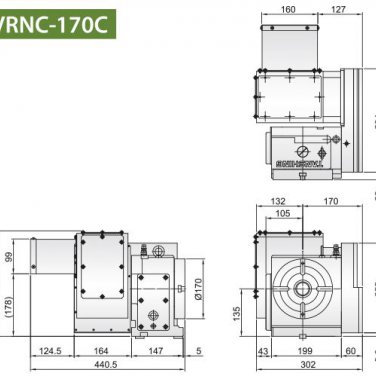

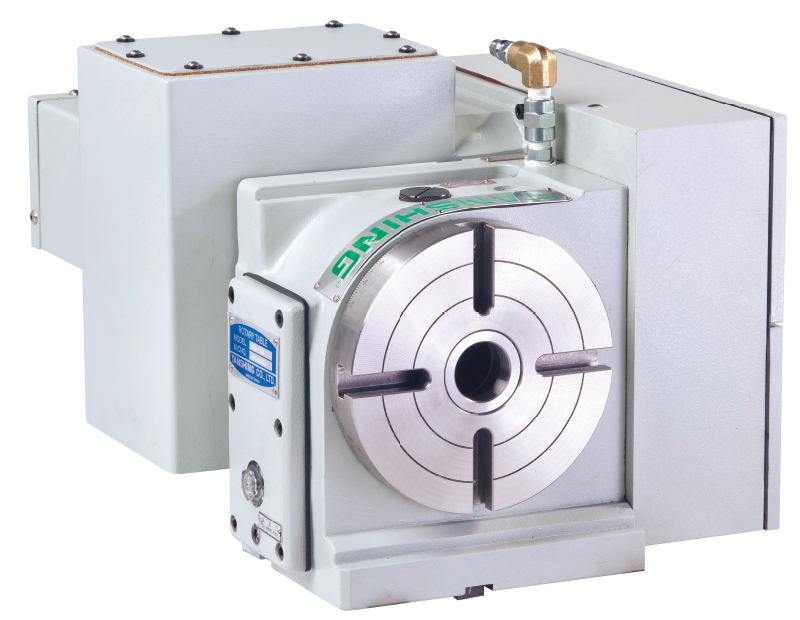

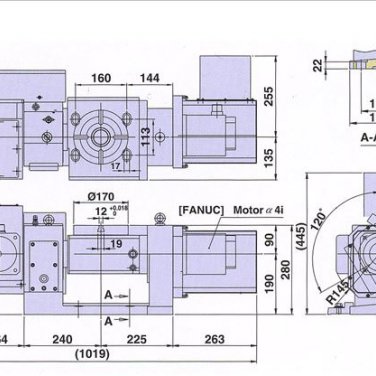

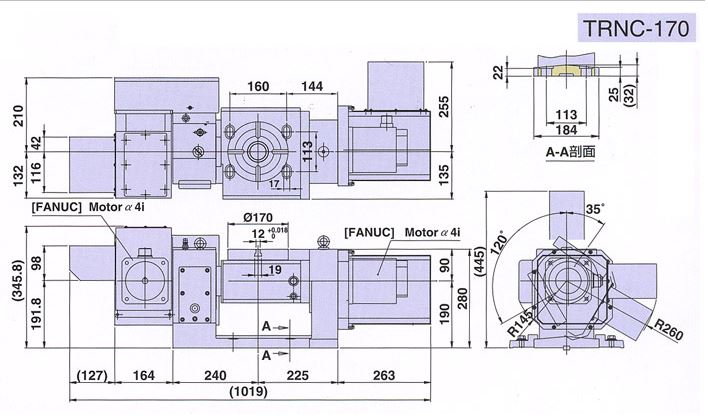

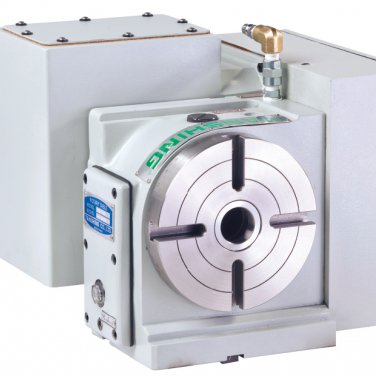

  • 4th rotary axes

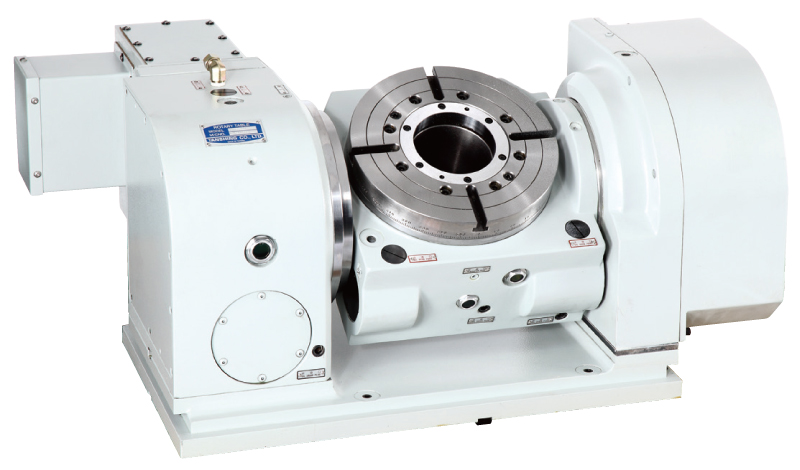

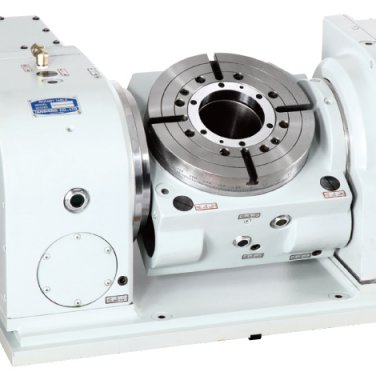

  • 4-5th axes
  • tool probe(Renishaw)
  • workpiece probe(Renishaw)
  • workshop programming Fanuc (Manual Guide) / Siemens (ShopMill)

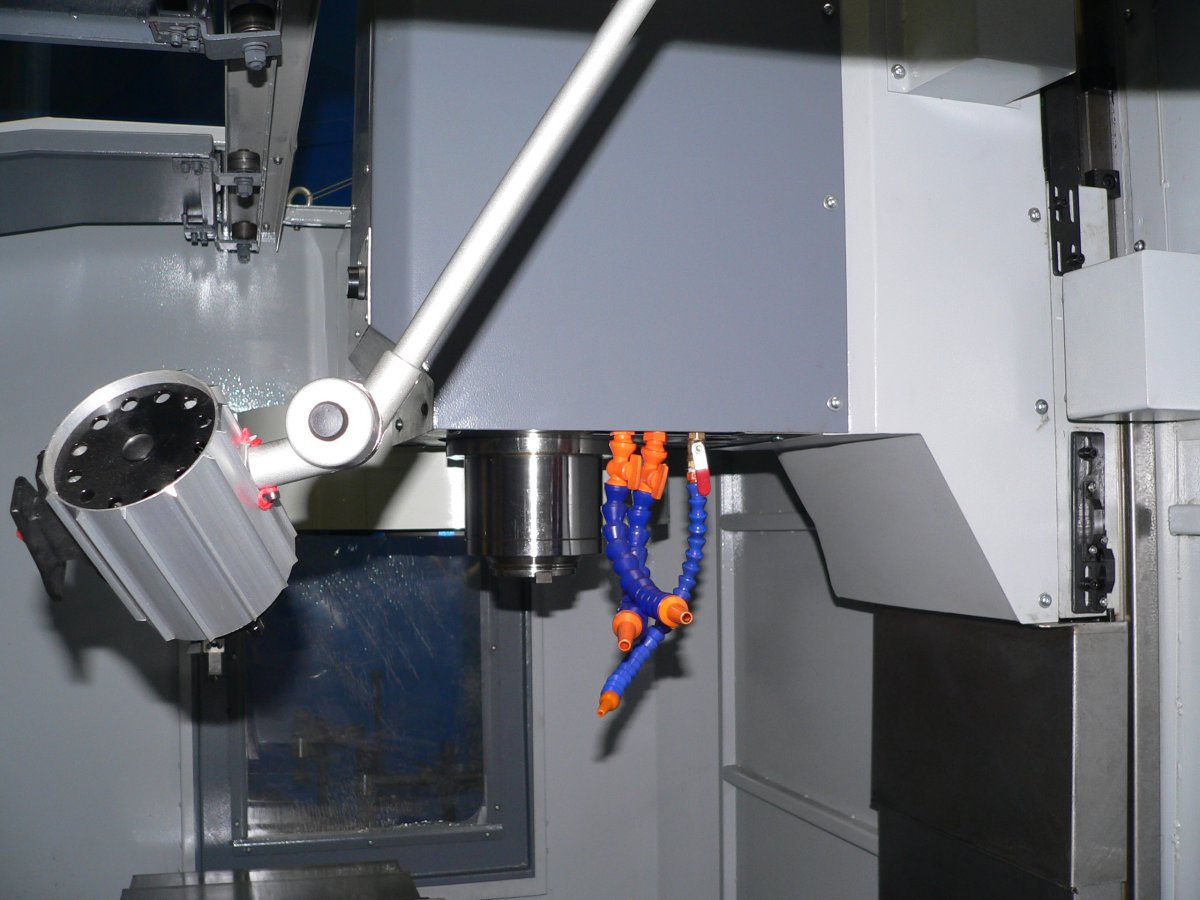

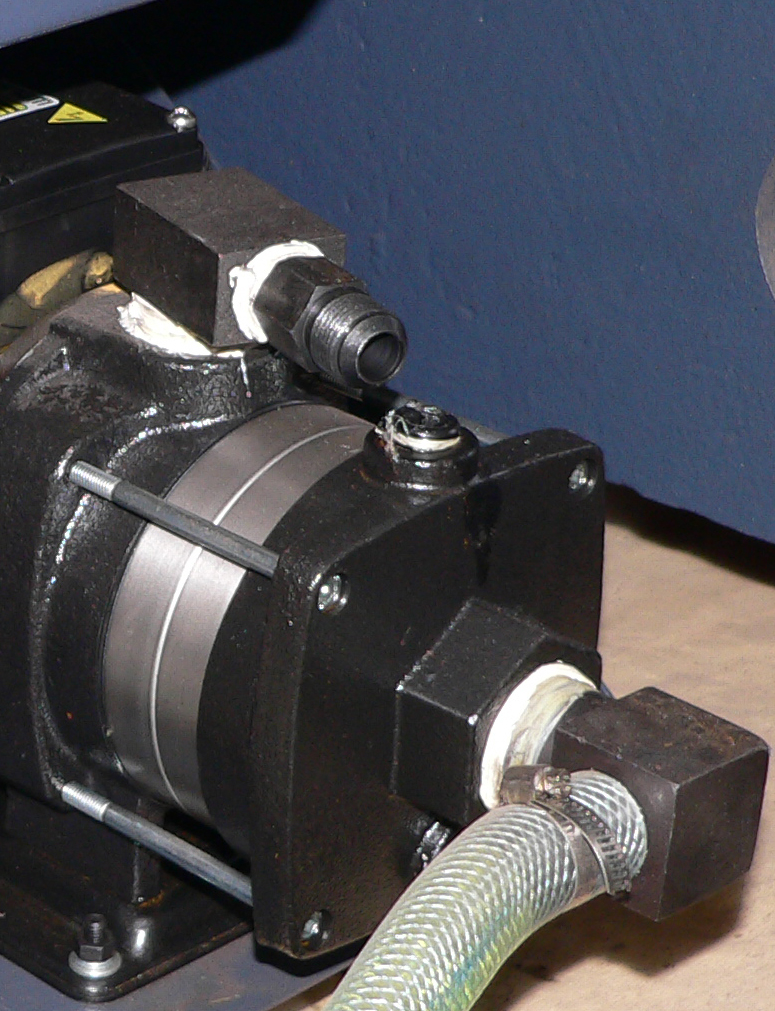

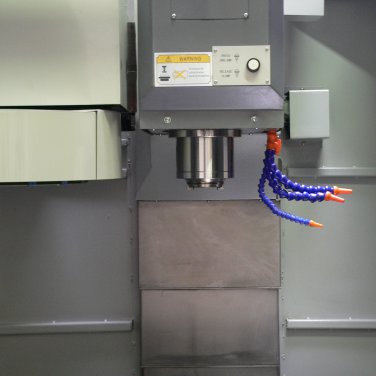

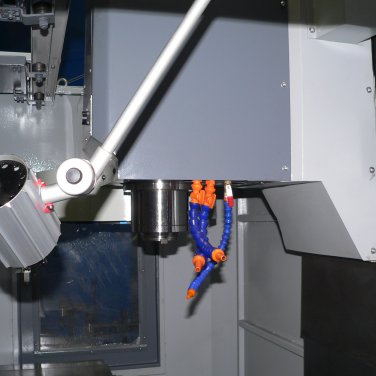

  • cooling via spindle hollow
  • chip conveyer
Travel of axes X 600 mm
Travel of axes Y 450 mm
Travel of axes Z 500 mm
Spindle nose to tabel 130-630 mm
Rapid feeding of axes X, Y 20 m/min
Rapid feeding of axes Z 15 m/min
Feeding speed 1 - 5000 mm/min
Table size 800 x 450 mm
Max. loading capacity of table 600 kg
Pneumatic press 0,6 MPa
T-slots - nr./ width / distance of the table 3/18/160
Max. spindle speed 8000 ot./min
Spindle speed 5,5 / 7,5 kW

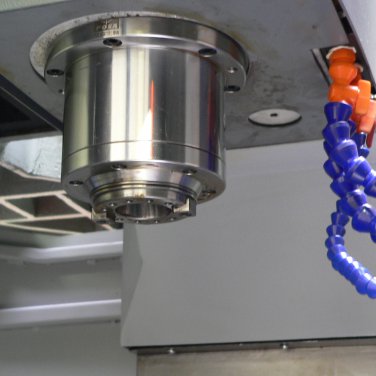

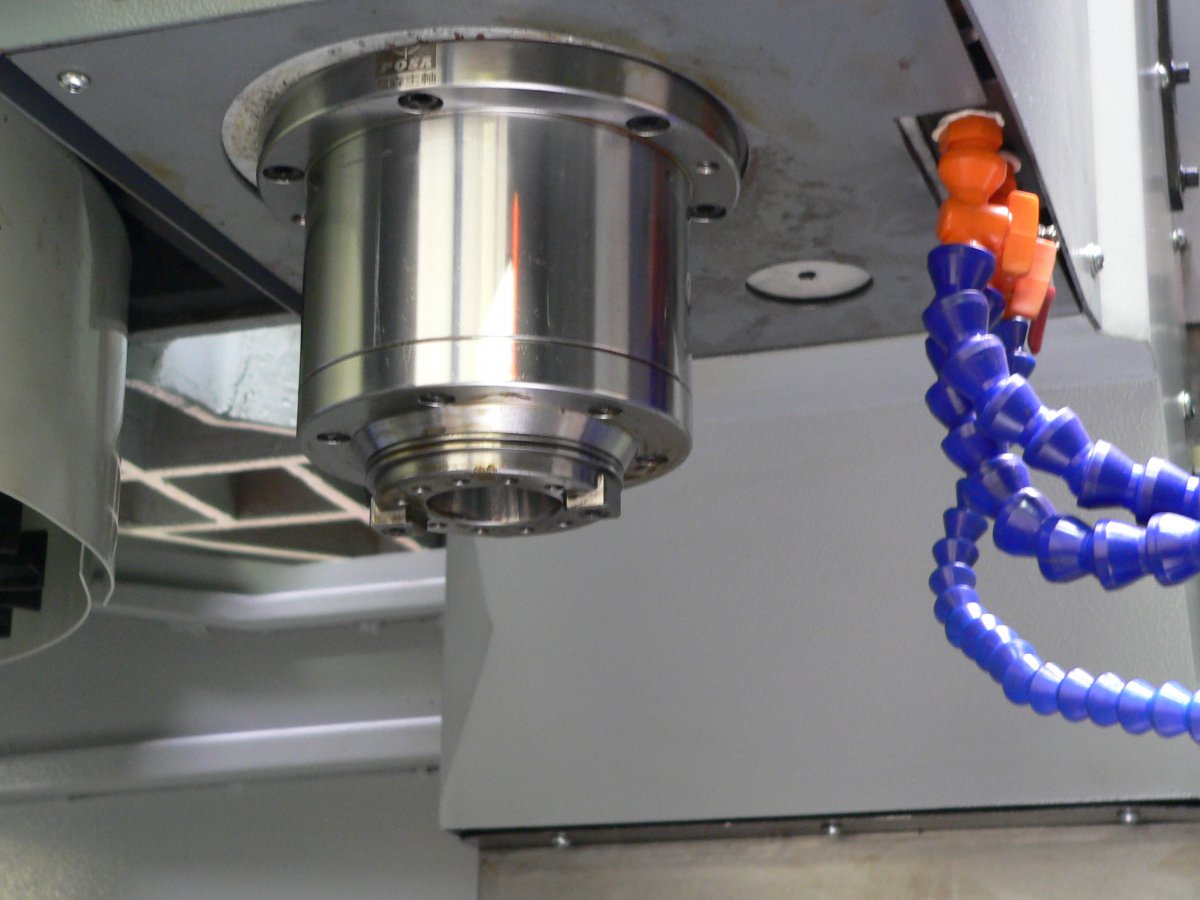

Spindle taper BT40
Tools in magazine 16
Max. tool lenght 300 mm
Max. tool diameter 130 mm
Overall dimensions 2500 x 2000 x 2450 mm
Weight 3500 kg
