CNC machining center AXHC715 Fanuc / Siemens

Home
CNC machining center Fanuc / Siemens
CNC machining center AXHC715 Fanuc / Siemens

Cast iron stand for rigidity and long term accuracy, ball screws

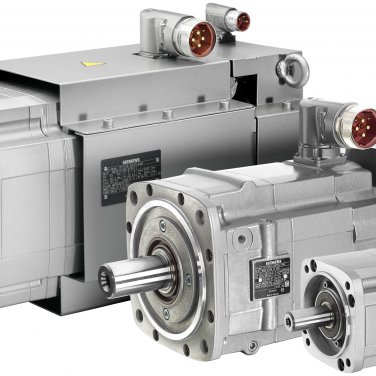

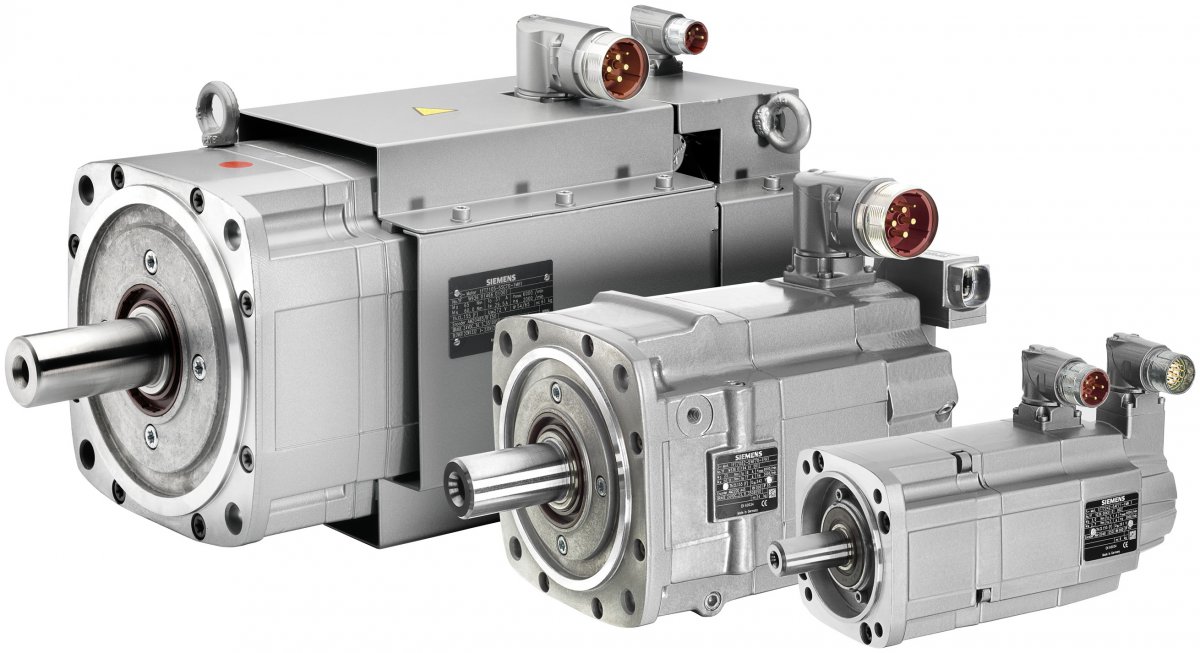

servo drives Fanuc / Siemens

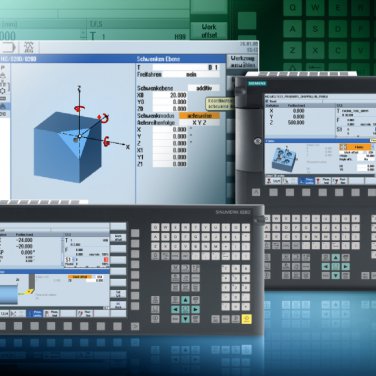

Fanuc 0i mate MD CNC system / Siemens 828D
magazine umbrella type (16 tools)

Query

Standard version

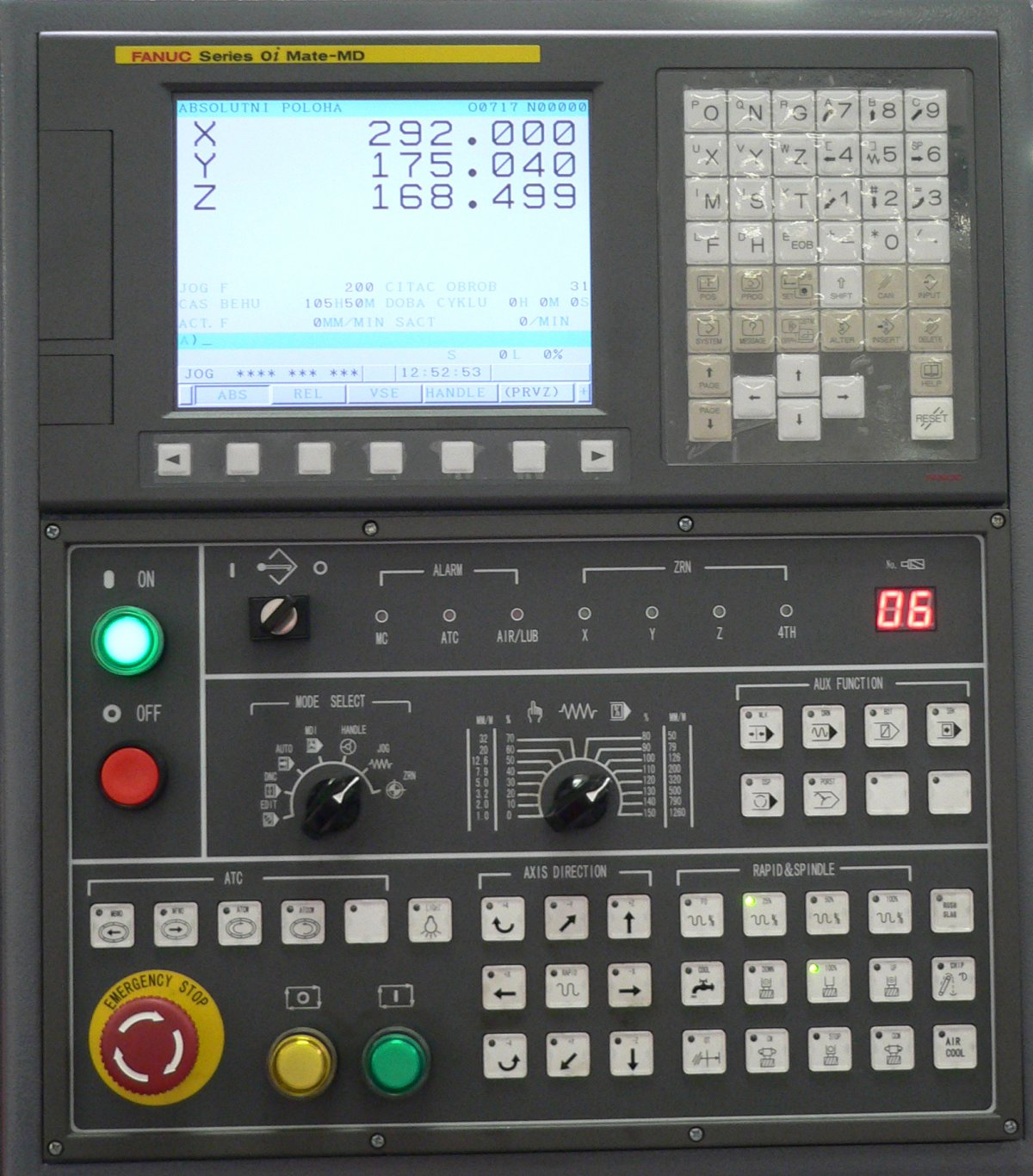

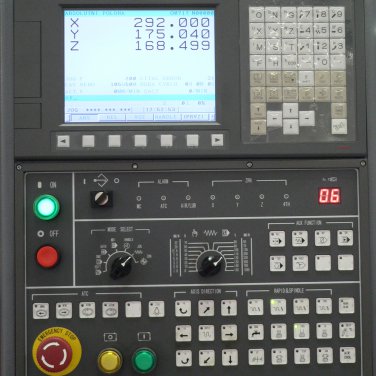

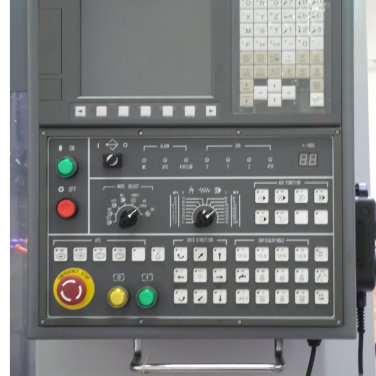

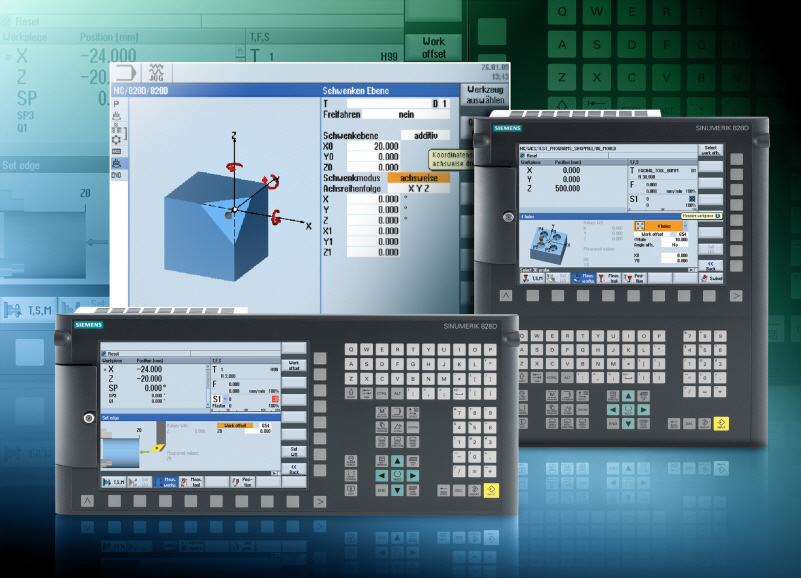

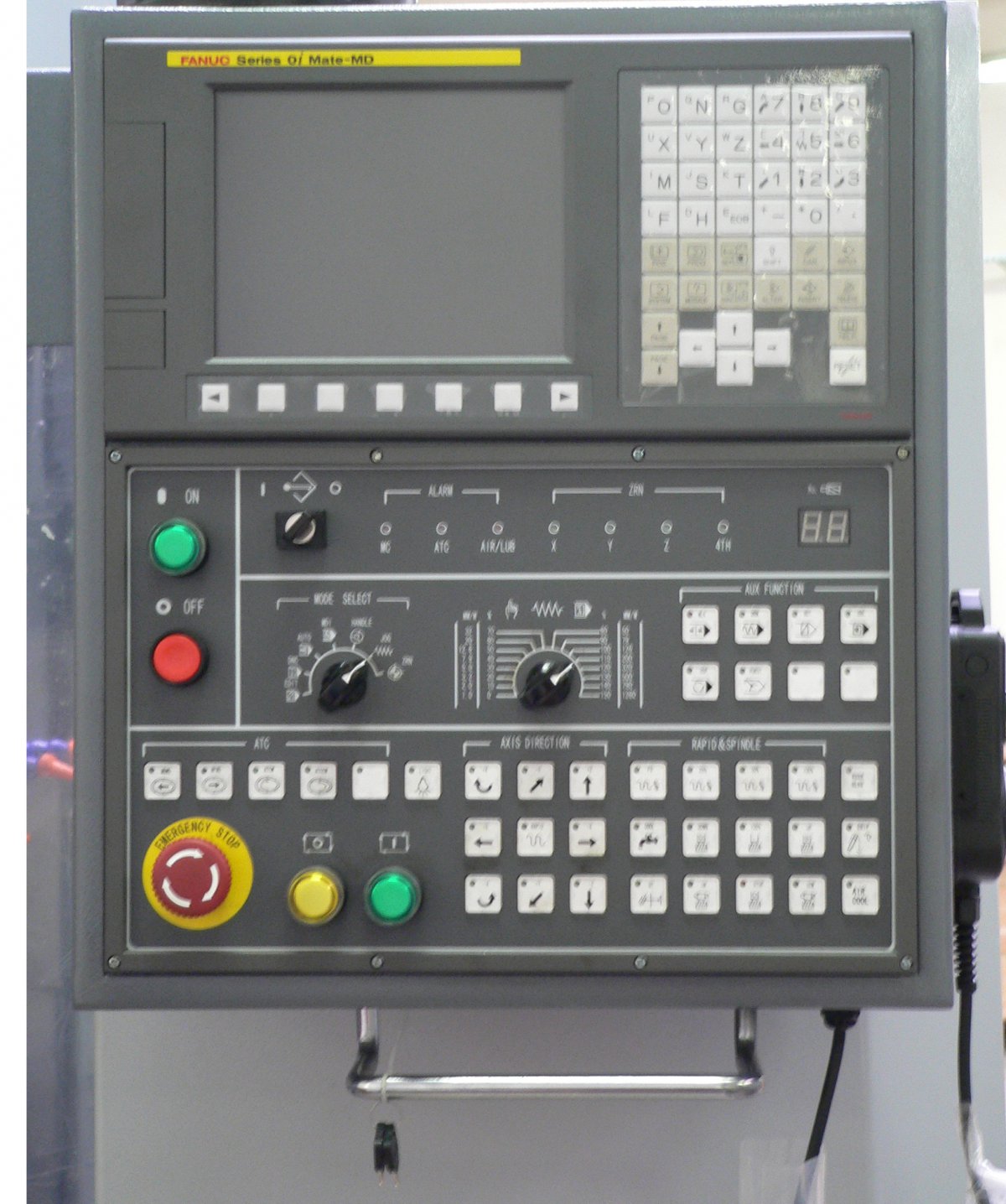

Fanuc 0i MateMD CNC system / Siemens 828D
Umbrella type magazine with 16 tool posts

Options

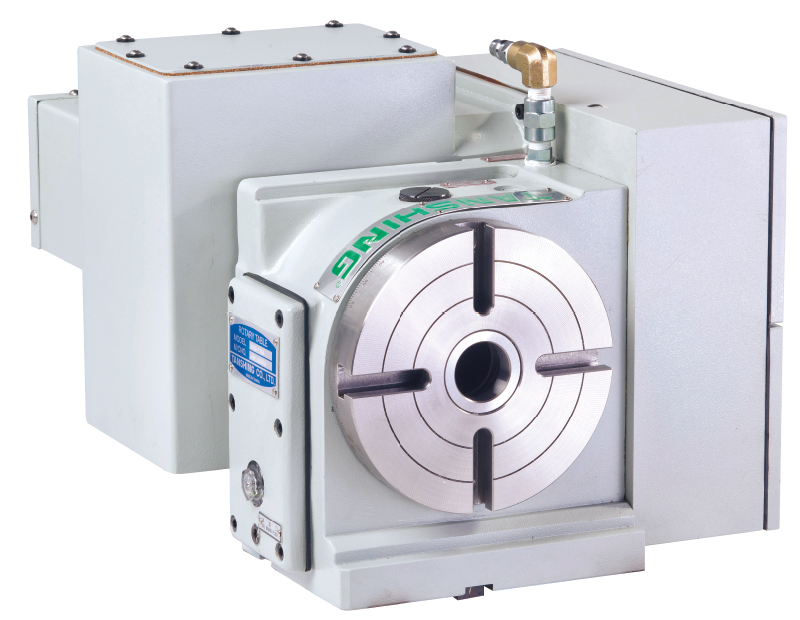

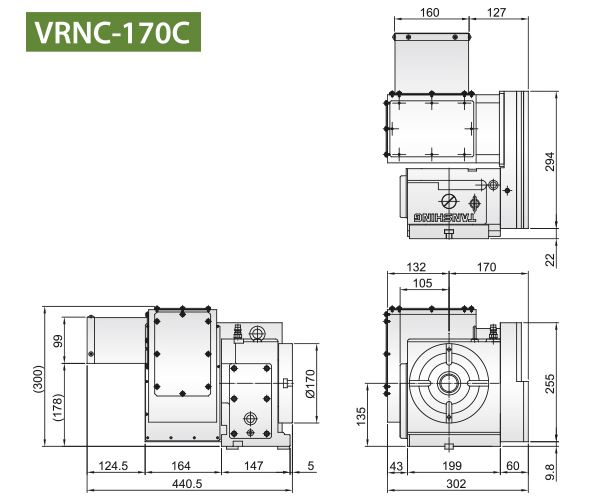

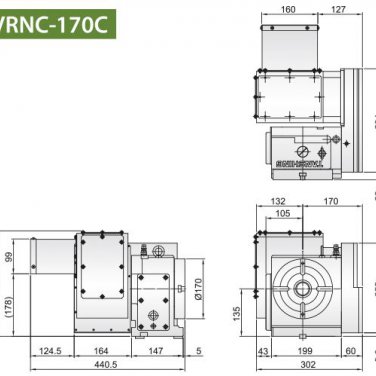

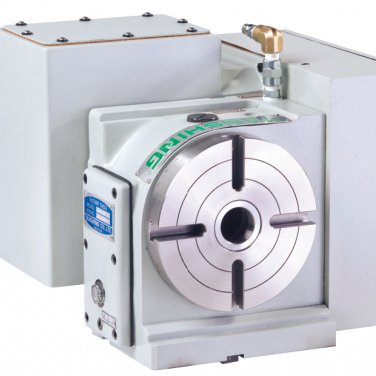

4th rotary axes

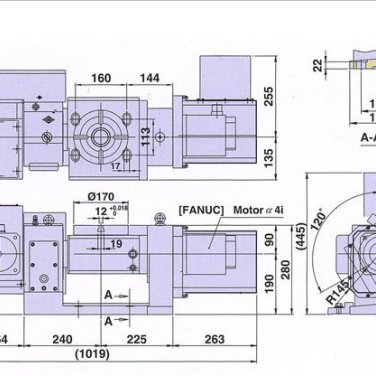

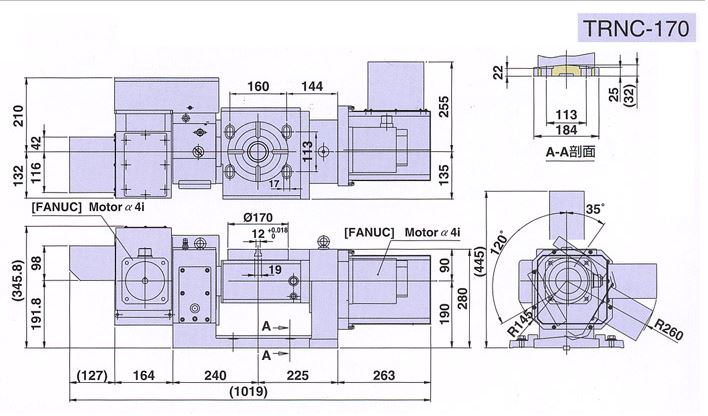

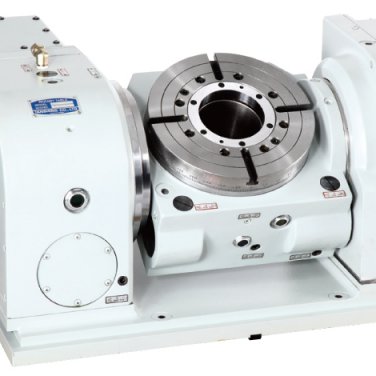

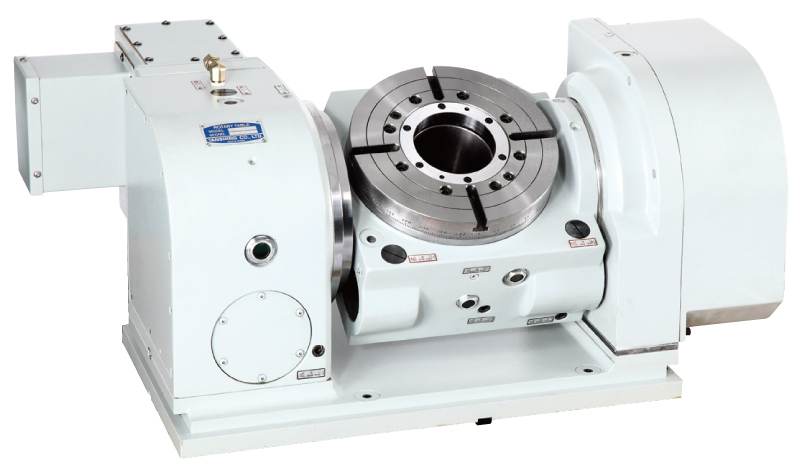

4-5th axes
tool probe(Renishaw)
workpiece probe(Renishaw)
workshop programming Fanuc (Manual Guide) / Siemens (ShopMill)
cooling via spindle hollow
chip conveyer

Technicial datas

Travel of axes X	1000 mm
Travel of axes Y	500 mm
Travel of axes Z	580 mm
Spindle nose to table	140-720 mm
Rapid feeding of axes X, Y	20 m/min
Rapid feeding of axes Z	15 m/min
Feeding speed	1-2000 mm/min
Table size	1600 x 500 mm
Max. loading capacity of table	500 kg
Max. tool diameter	200 mm
T-slots - rn./ width / distance of the table	5/18/80 mm
Max. spindle speed	2400 ot./min
Spindle power	11 kW
Spindle taper	BT50
Tool number in magazine	16
Possitioning accuracy	0,025
Re-possitioning accuracy	0,015
Overall dimensions	2360 x 2200 x 2400 mm
Weight	6000 kg
