CNC machining center AXH7135 Fanuc/Siemens

  • cast-iron stand for rigidity and long term accuracy, ball screws
  • slide guide of axes X, Y, Z

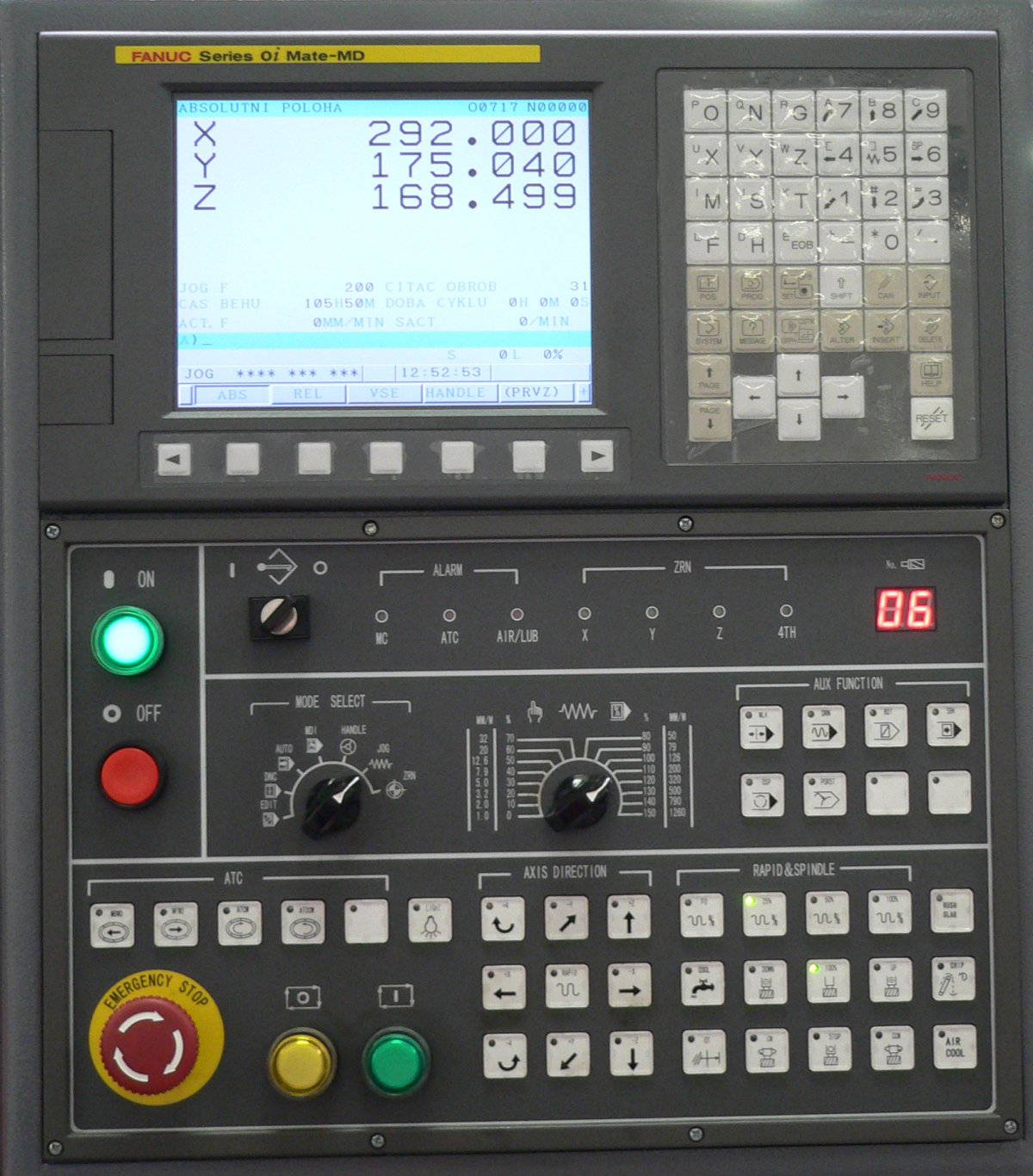

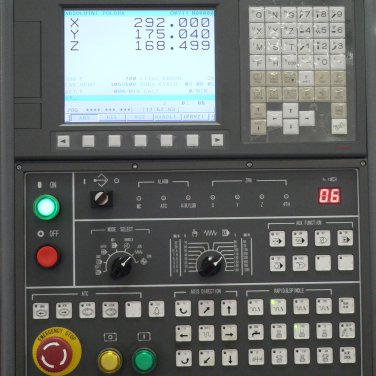

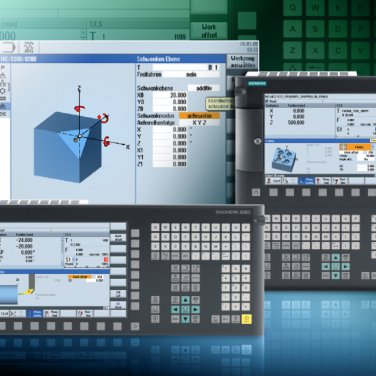

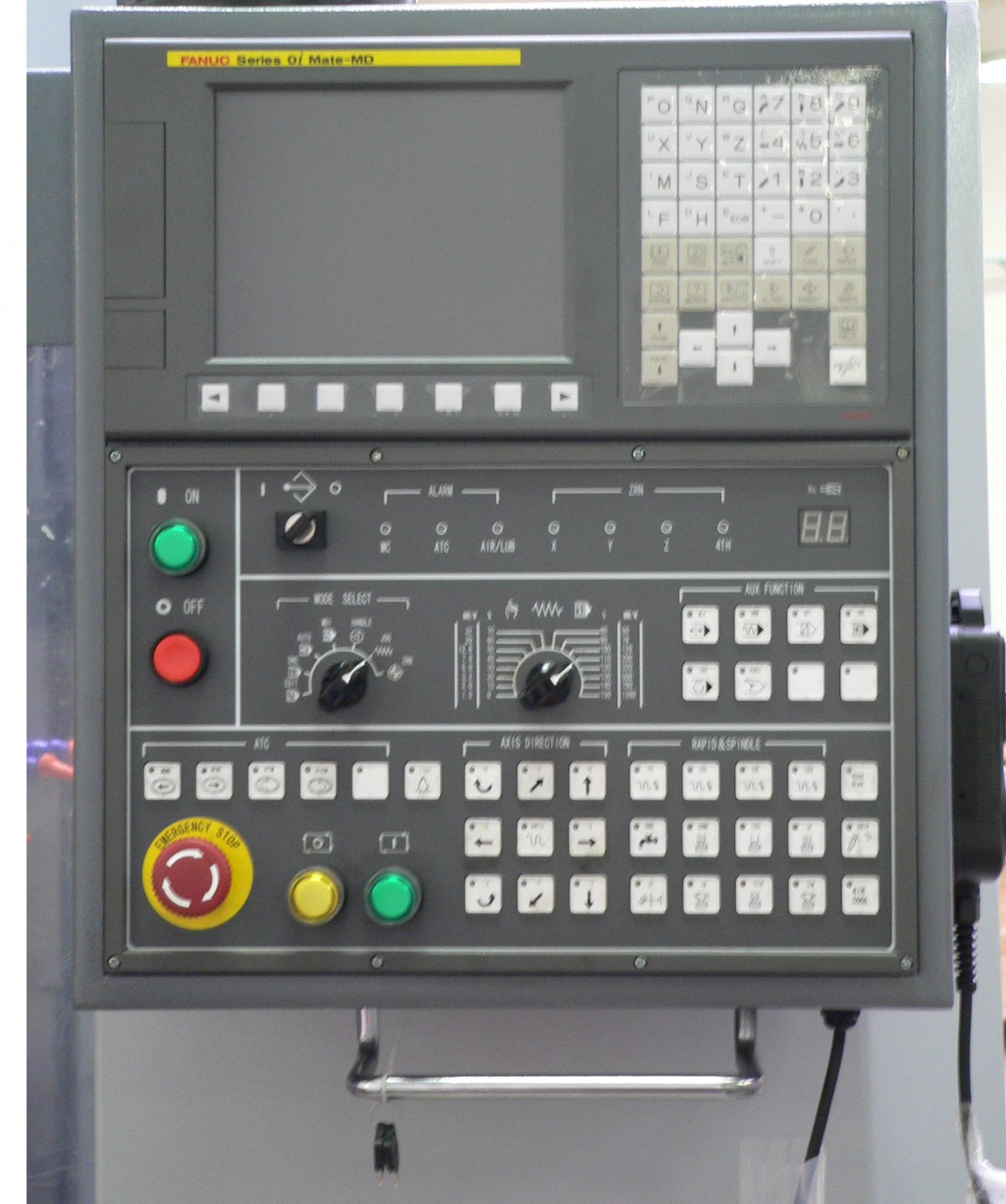

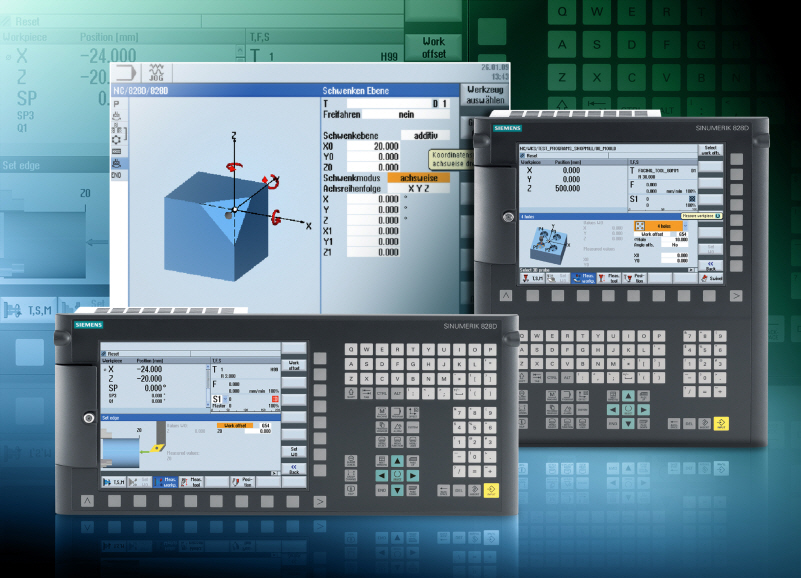

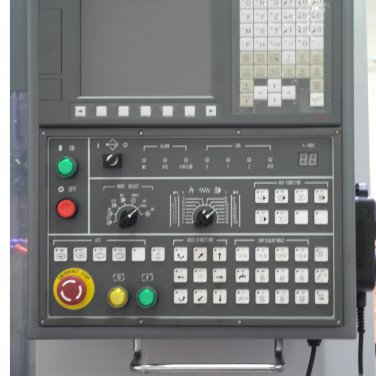

  • Fanuc 0i mate MD CNC system / Siemens 828D
  • Umbrella type magazine (12 tools)

Standard version

  • Fanuc 0i MateMD CNC system / Siemens 828D
  • Umbrella type magazine with 12 tool posts

Options

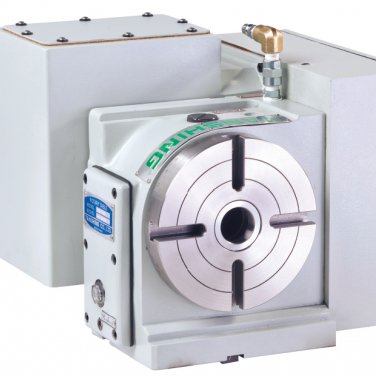

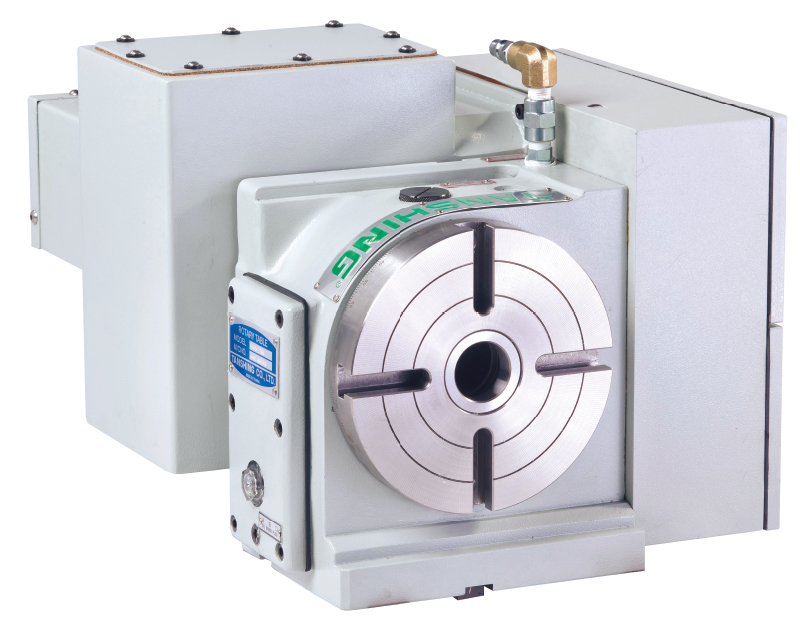

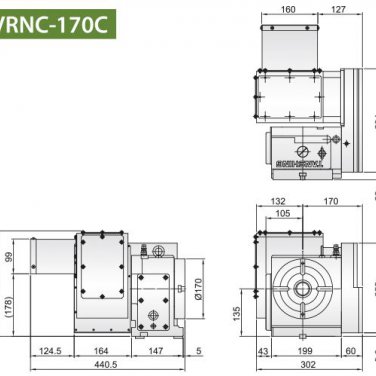

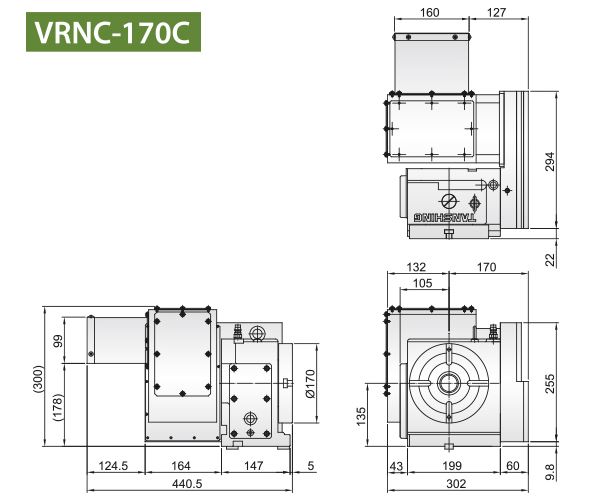

  • 4th rotary axes

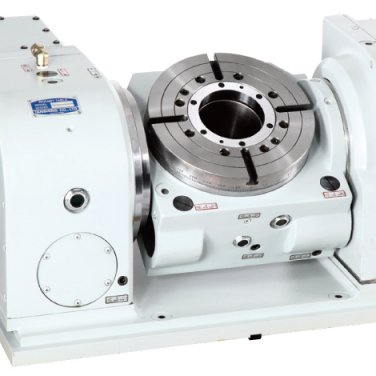

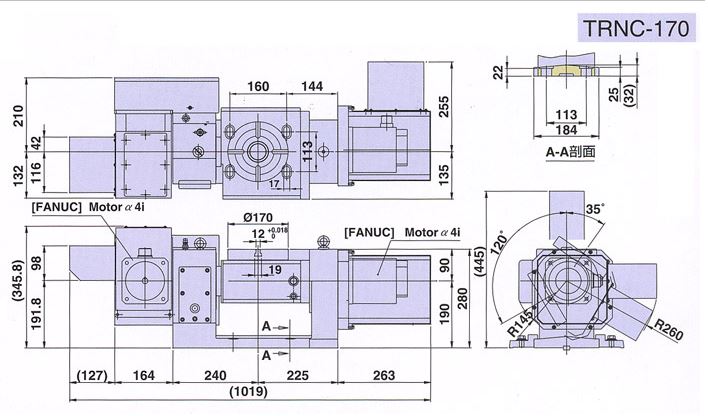

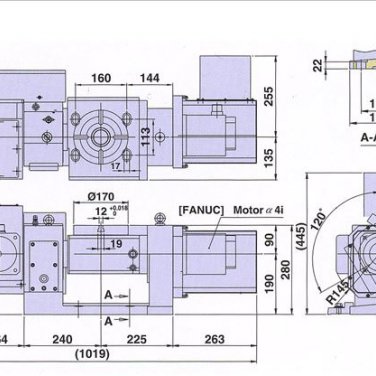

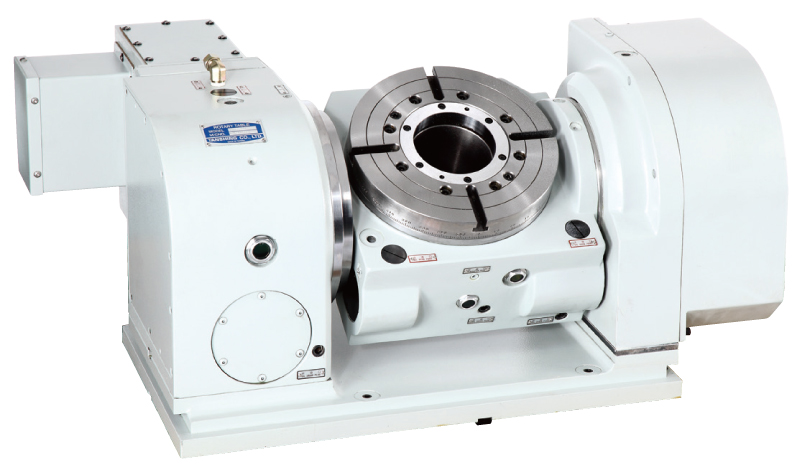

  • 4-5th axes
  • tool probe(Renishaw)
  • workpiece probe(Renishaw)
  • workshop programming Fanuc (Manual Guide) / Siemens (ShopMill)
  • cooling via spindle hollow
  • chip conveyer
 Table size  950x350mm
 Travel of axes X  650mm
 Travel of axes Y  350mm
 Travel of axes Z  500mm
 Spindle nose to table  100-600mm
 T-slots nr.  / width / distance of table  5/18/90mm
 Spindle taper  BT40
 Max. tool diameter  110mm
 Max. tool lenght  300mm
 Rapid feeding X, Y, Z  20000/20000/15000 mm/min
 Max. spindle speed  8000 rpm
 Main motor  3,7/5,5kW
 Max. workpiece weight  400kg
 Weight  2600kg
 Overall dimensions  2380x1950x2300mm
