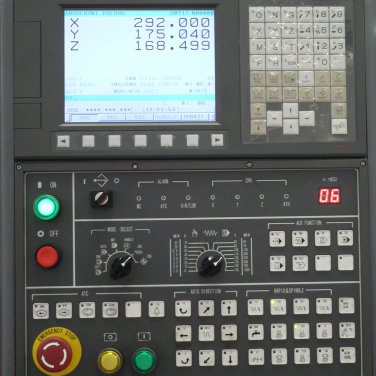

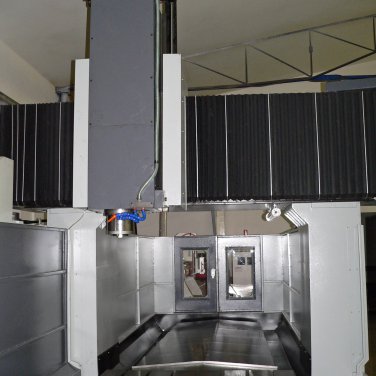

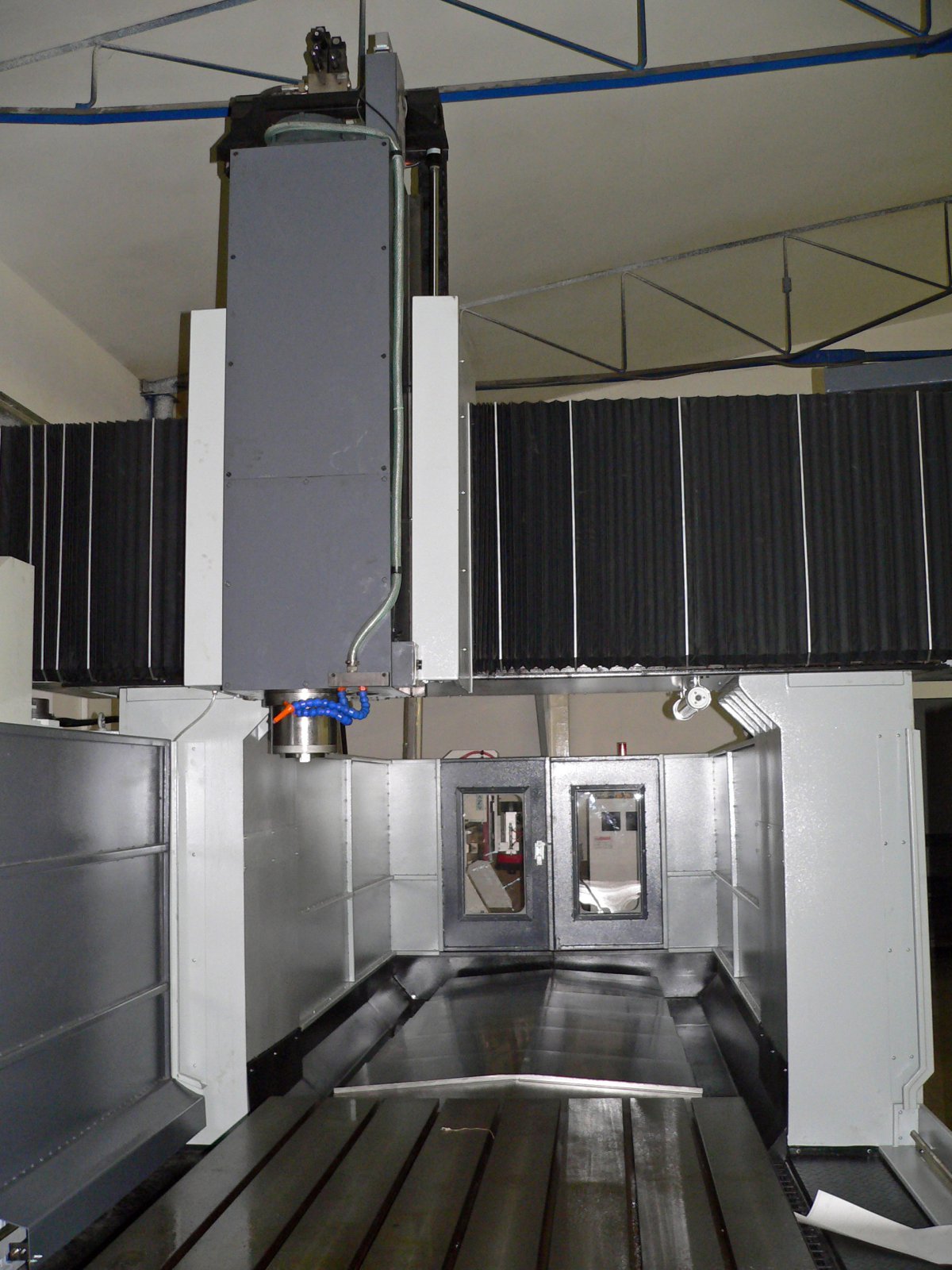

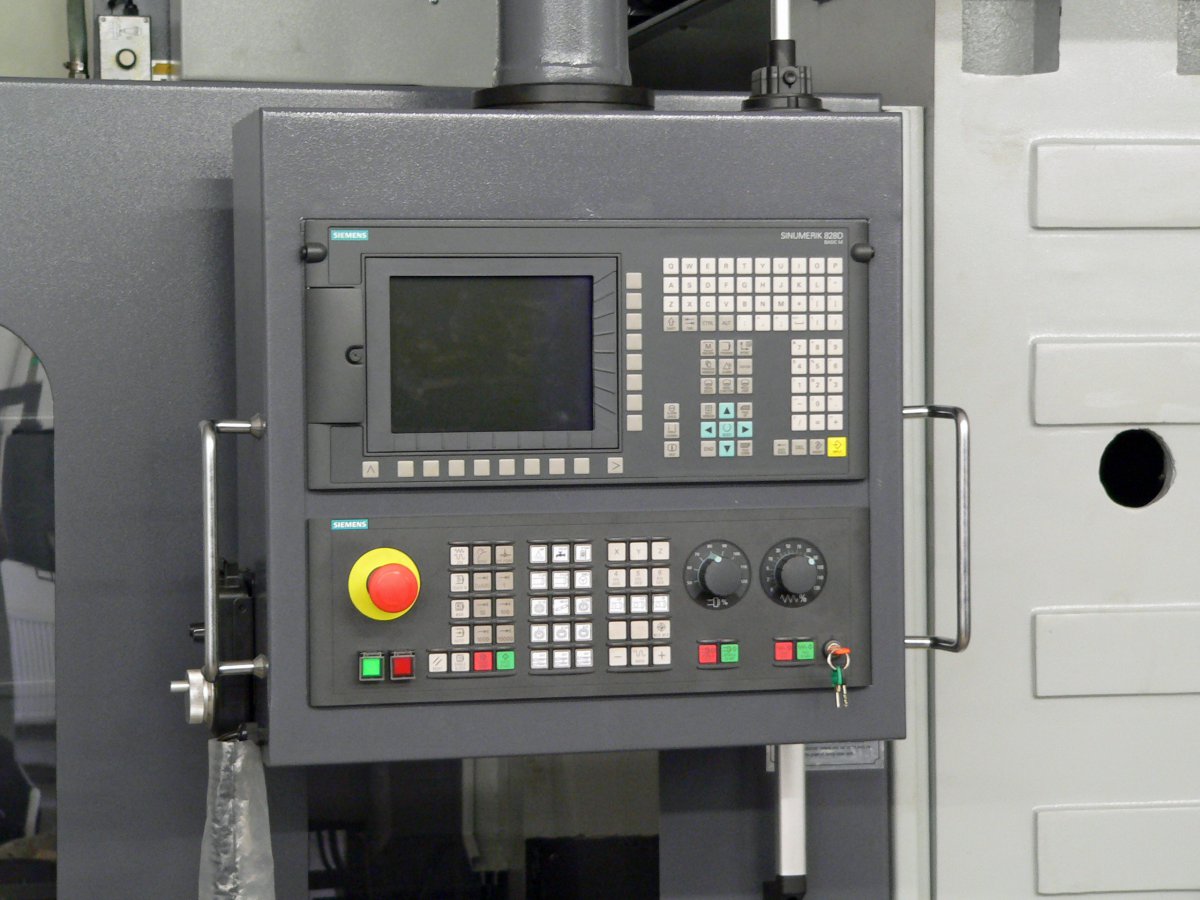

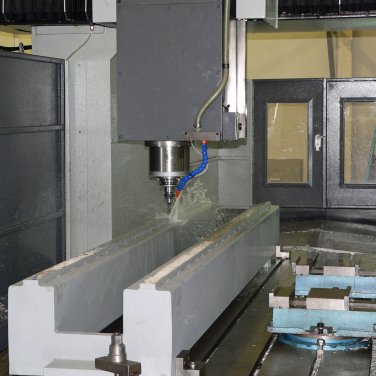

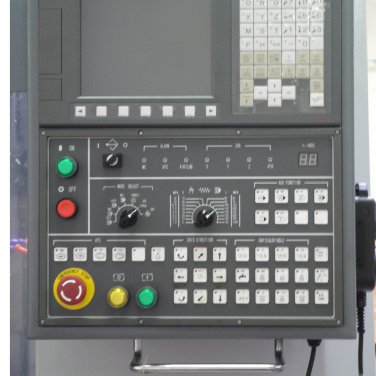

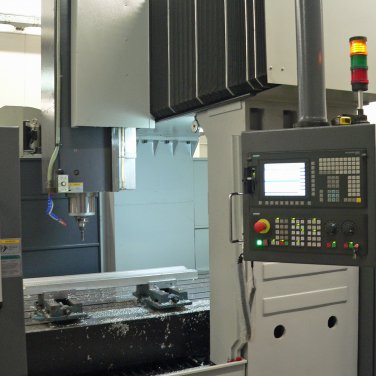

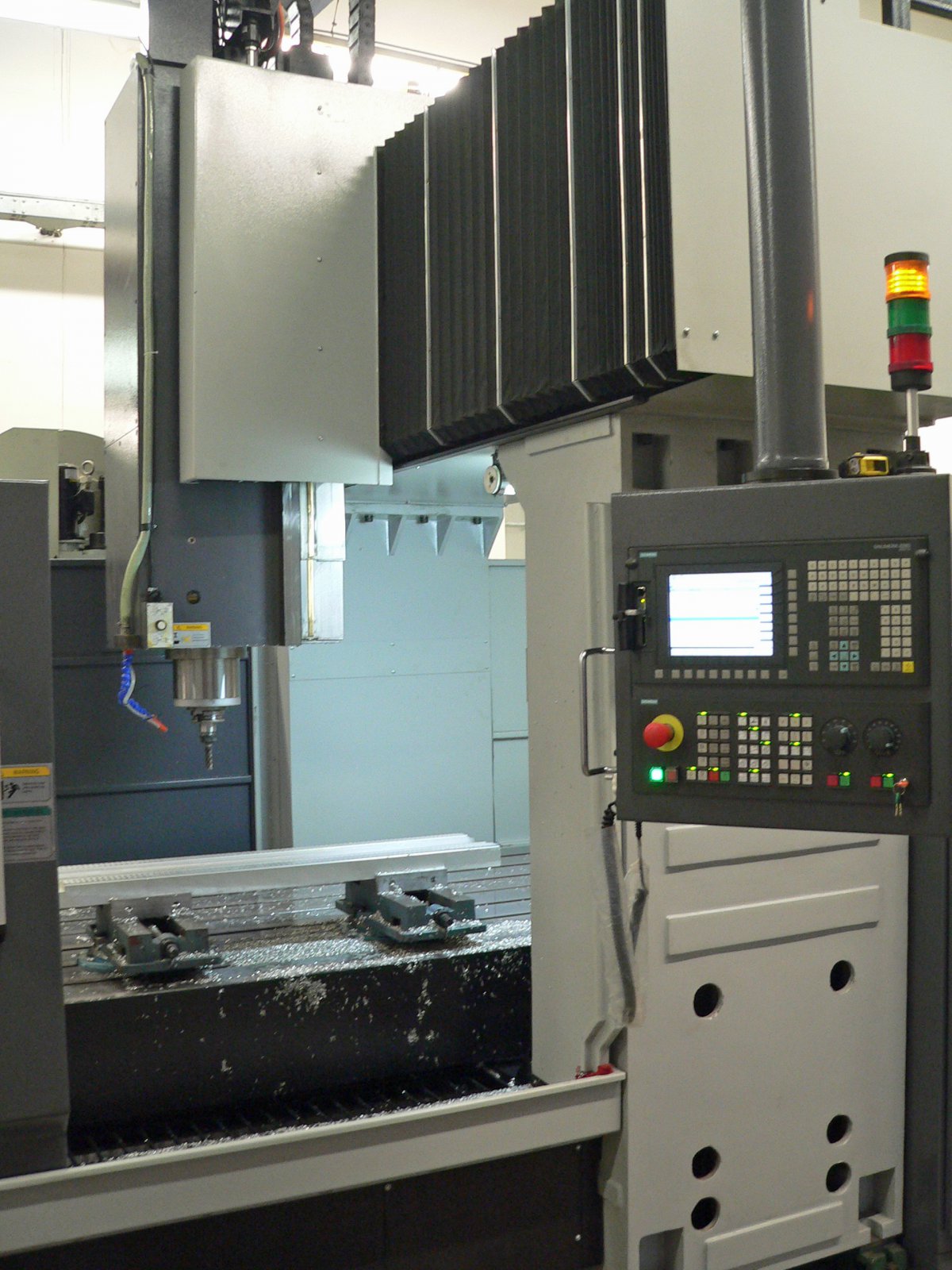

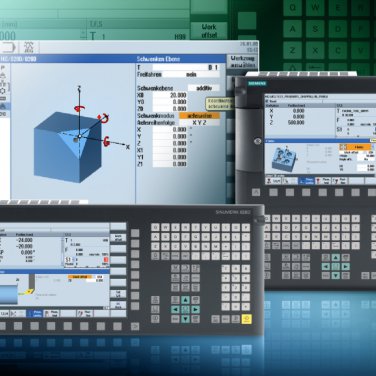

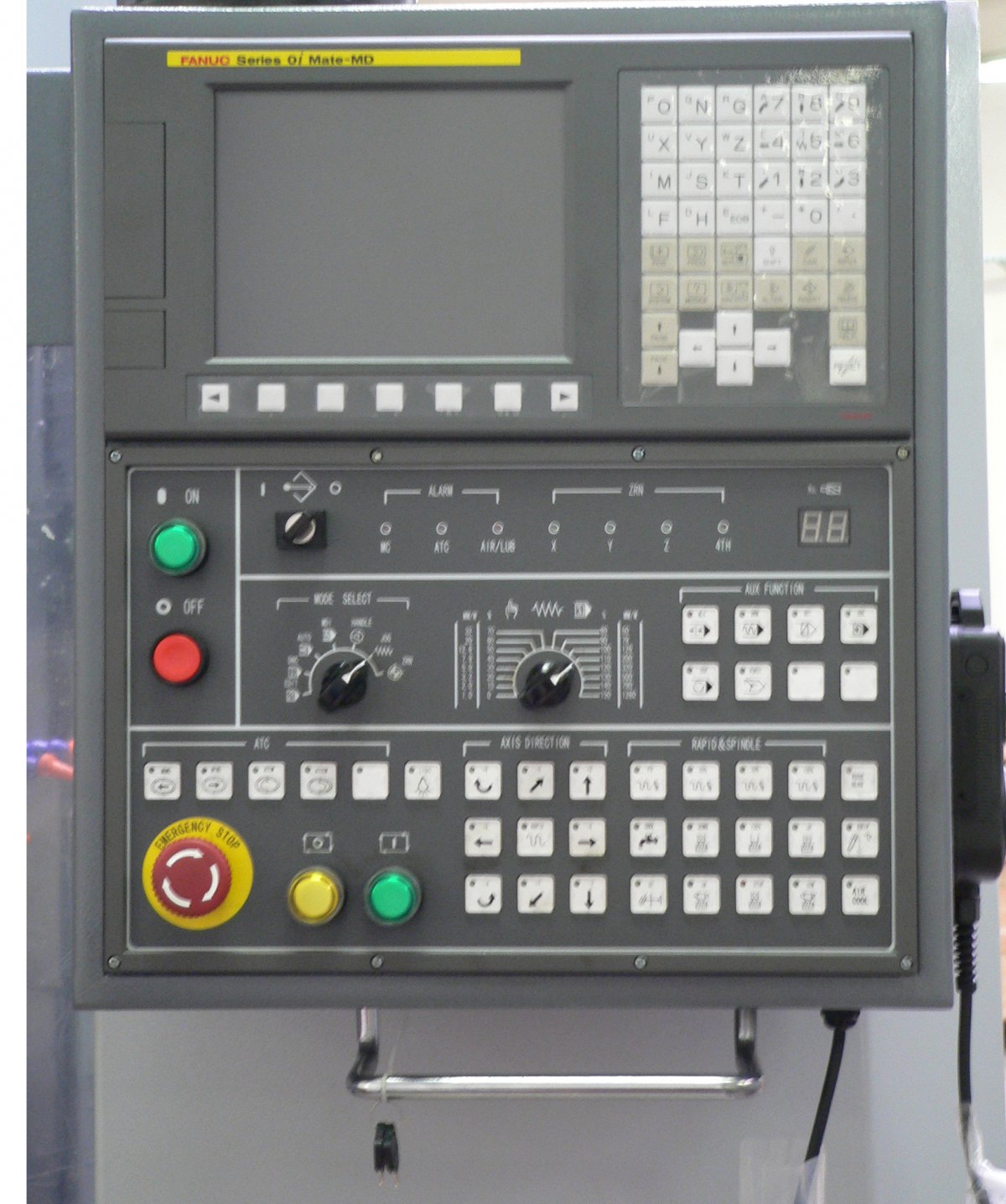

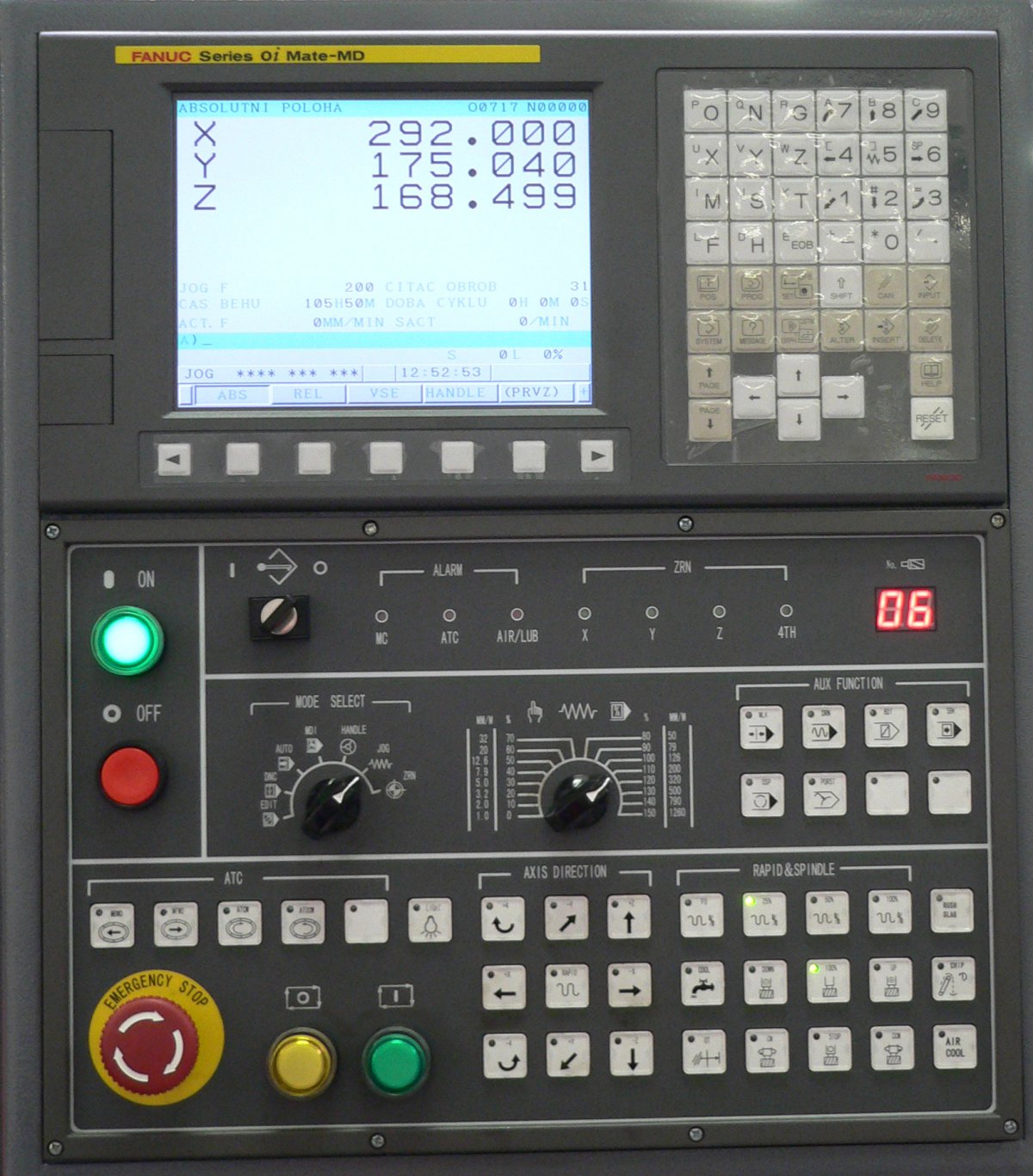

CNC gantry machining center AXH2412 Fanuc/Siemens

Query

Standard version

Travel of axes X	2200 mm
Travel of axes Y	1600 mm
Travel of axes Z	700 mm
Spindle nose to table	210-910 mm
Rapid feeding X, Y	20000 mm/min
Rapid feeding Z	15000 mm/min
Table size	2000 x 1250 mm

Max. loading capacity of the table	5000 kg
Guide type	roller / slide
T-slots - nr/ width / distance of table	7/22/180 mm
Max. spindle speed	50-3000 or 100-6000 rpm
Spindle power	18,5 / 22 kW
Spindle taper	BT50

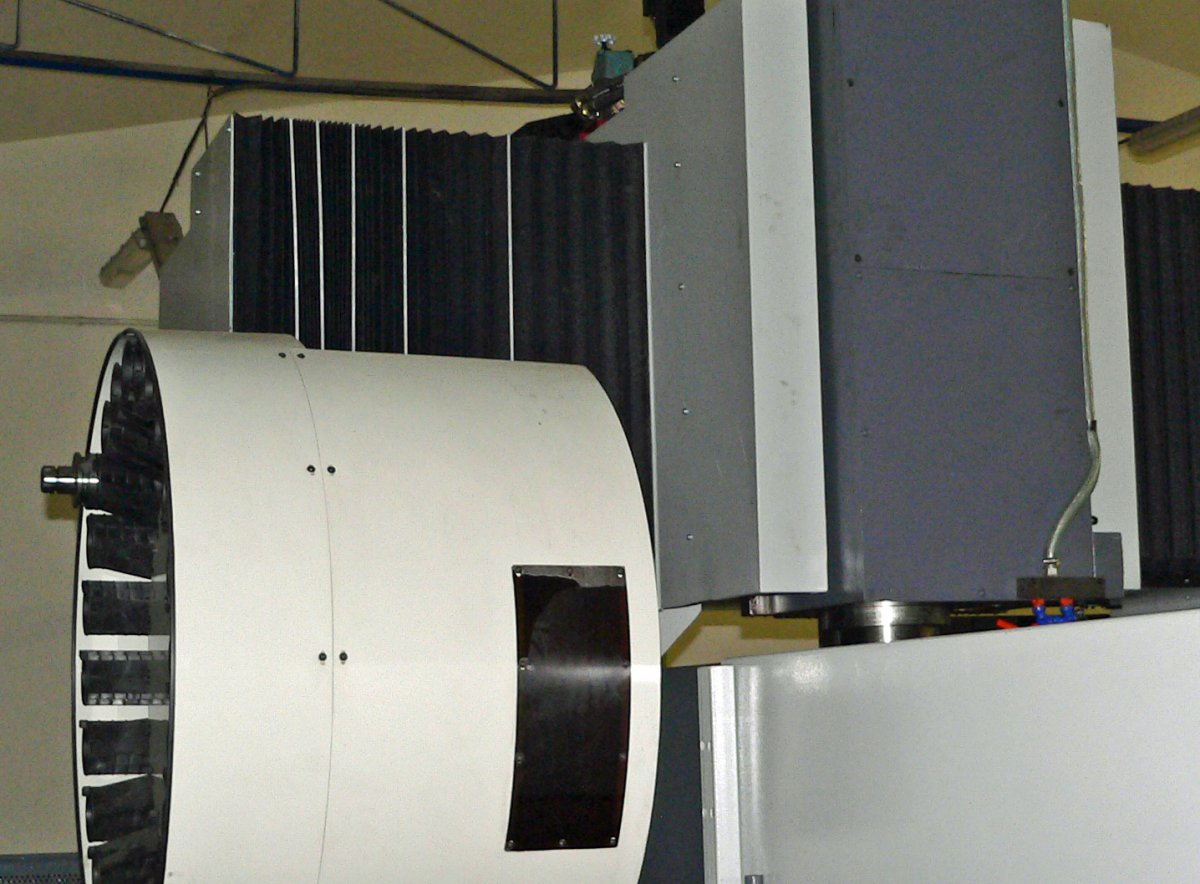

Magazine capacity	16
Possitioning accuracy	0,015 mm
Re-possitioning accuracy	0,006 mm
Overall dimensions	5800 x 4000 x 4000 mm
Weight	22000 kg
