CNC lathe ATMC25SMTY Fanuc / Siemens

Servo power turret with 40 machining center milling capacity of holder
Two spindles with hydraulc clamp
Possibility of driven tools
Two-winding, wide-area electric spindle, so that low-speed heavy cutting and high speed finishing can have both
Separated movement of axes Y, non syntetic axes
Tool probe

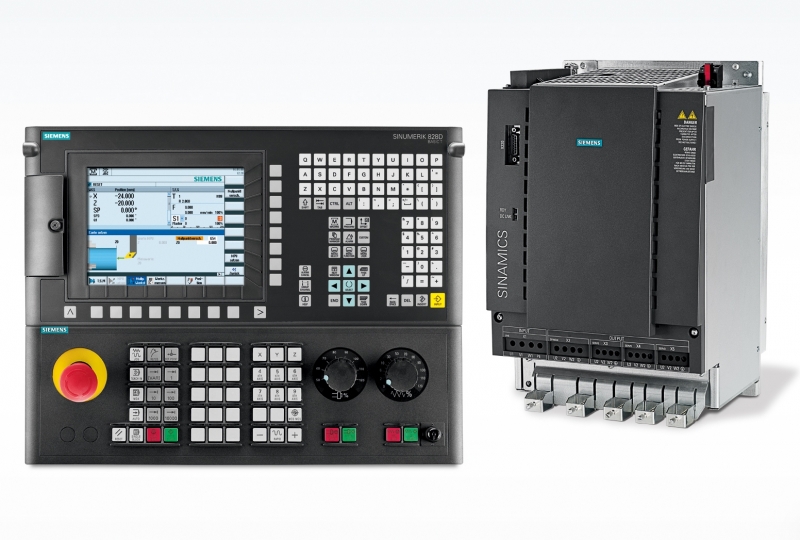

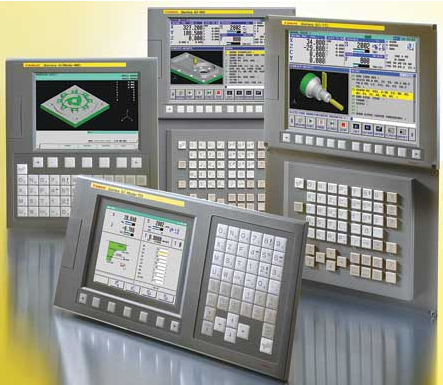

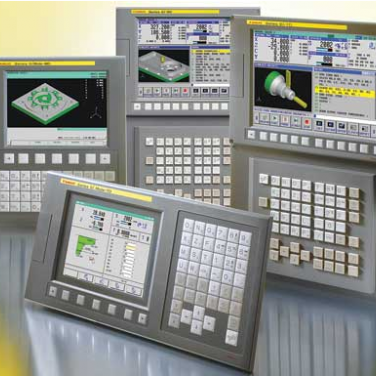

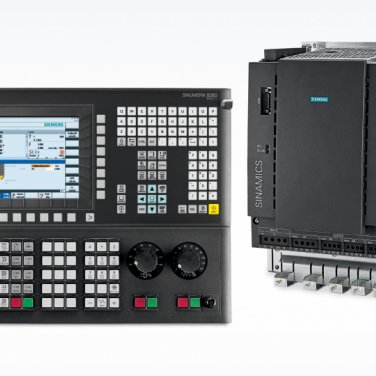

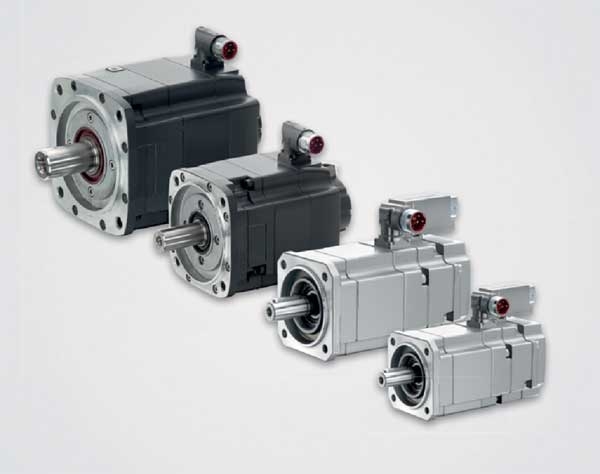

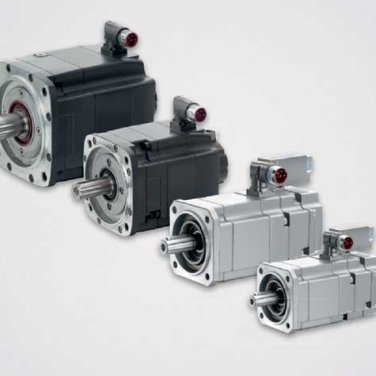

Servo drives Fanuc / Siemens

Query

Standard version

Max. swing over bed	800 mm
Max. machining diameter	380 mm
Distance of spindle and tailstock	60-860 mm
Max. support lenght	715 mm
Max. spindle bore	76 mm
Travel of axes X1	245 mm
Travel of axes Y	±50 mm
Travel of axes Z1	800 mm
Travel of axes X2	245 mm
Travel of axes Z2	800 mm
Travel of axes W (tailstock)	780 mm
Rapid feeding X1/Z1	20000 mm/min
Rapid feeding Y	18000 mm/min
Rapid feeding W	15000 mm/min
Spindle speed	30-4000 rpm
Spindle nose	A2-8
Spindle power	15/22 kW
Hydraulic chuck	254 mm
Tailstock taper	Morse MT5
Power turret shank	BMT65
Tool turret nr.	12ks
Cutter / bore arbor	◊25/Ø 40 mm
Change tool time	0,35 s
Possitioning accuracy	±0,008 mm
Re-possitioning accuracy	±0,004 mm
Overall dimensions	4050x2200x2400mm
Weight	9000 kg
