CNC lathe ASS1015A Fanuc / Siemens

Home
CNC lathe Fanuc / Siemens
CNC lathe ASS1015A Fanuc / Siemens

Cast iron stand for long term rigidity and accuracy
horizontal and vertical driven tools
two spindles with possibility of workpiece transfer without spindle stop
withou turret, clemping of tools via T- slot.

Query

Standard version

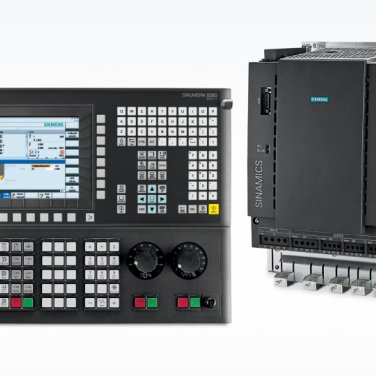

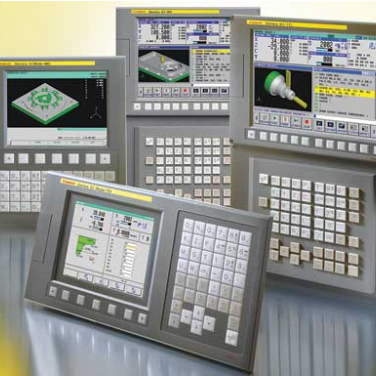

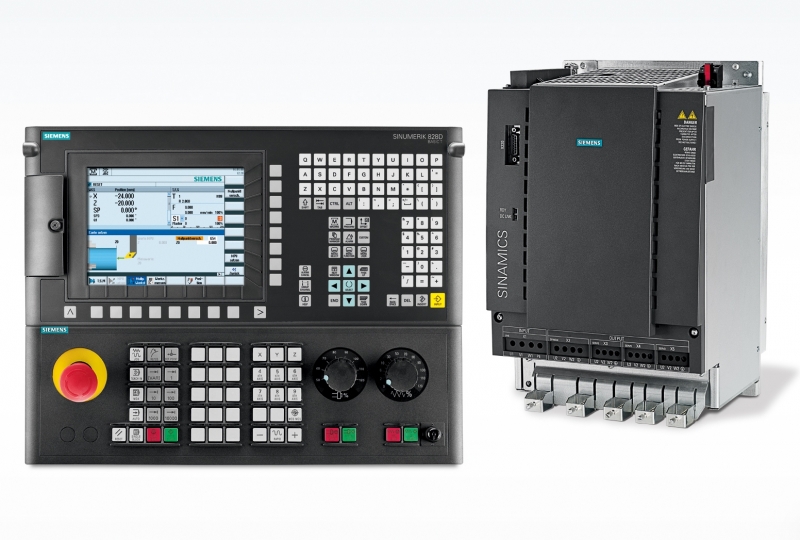

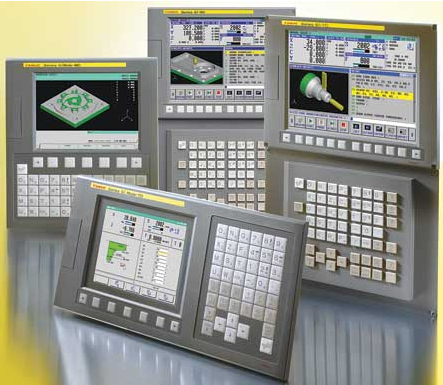

Fanuc 0i-mate TC CNC system / Siemens 828D
3 jaws hydraulic chuck
axes X, Z on linear guide
Turret with 10/10 positions (inner, outer)
hydraulic auto feeding tailstock

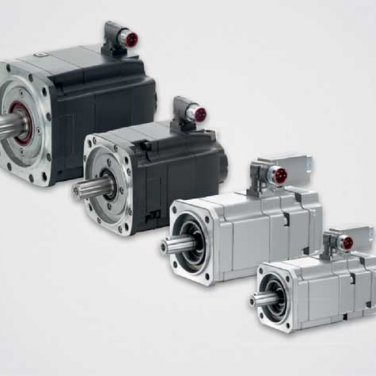

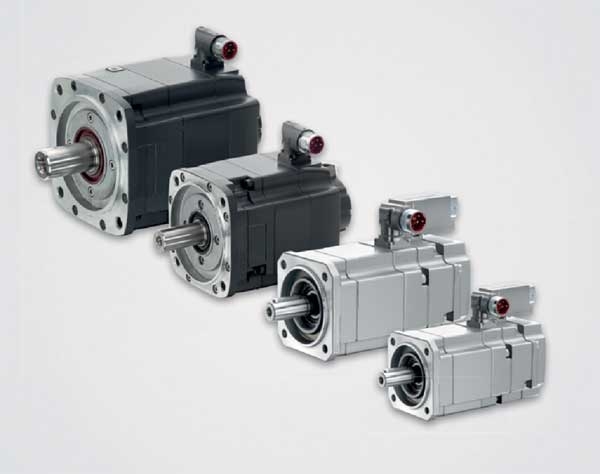

spindle drive Fanuc / Siemens
2 tool posts

Options

collet chuck
probe (Renishaw)
workshop programming Fanuc (Manual Guide) / Siemens (ShopTurn)
auto chip conveyer (including bath for separation of emulsion)
inner and outer clamping parts for clamping of knives
auto power feeder
3 jaws hydraulic chuck

Technicial datas

Spindle mower	5,5/7,5 kW
Spindle speed	60-5000 rpm
Spindle bore	43 mm
Tool size	16x16x100 mm
Tool numbers	5 pcs.
Electric tool numbers	3 pcs
Max. speed	3000 rpm
Tool power	750 W
Tool diameter	5-10 mm
Max. workpiece diameter	32 mm
Max. workpiece length	120 mm
Feeding of axes Z	240 mm
Rapid feeding of axes Z	18000 mm/min
Feeding of axes X	125 mm
Rapid feeding of axes X	20000 mm/min
Feeding of axes Y	400 mm
Rapid feeding of axes Y	20000 mm/min
Overall dimensions	2750x1560x1800 mm
Weight	2600kg
