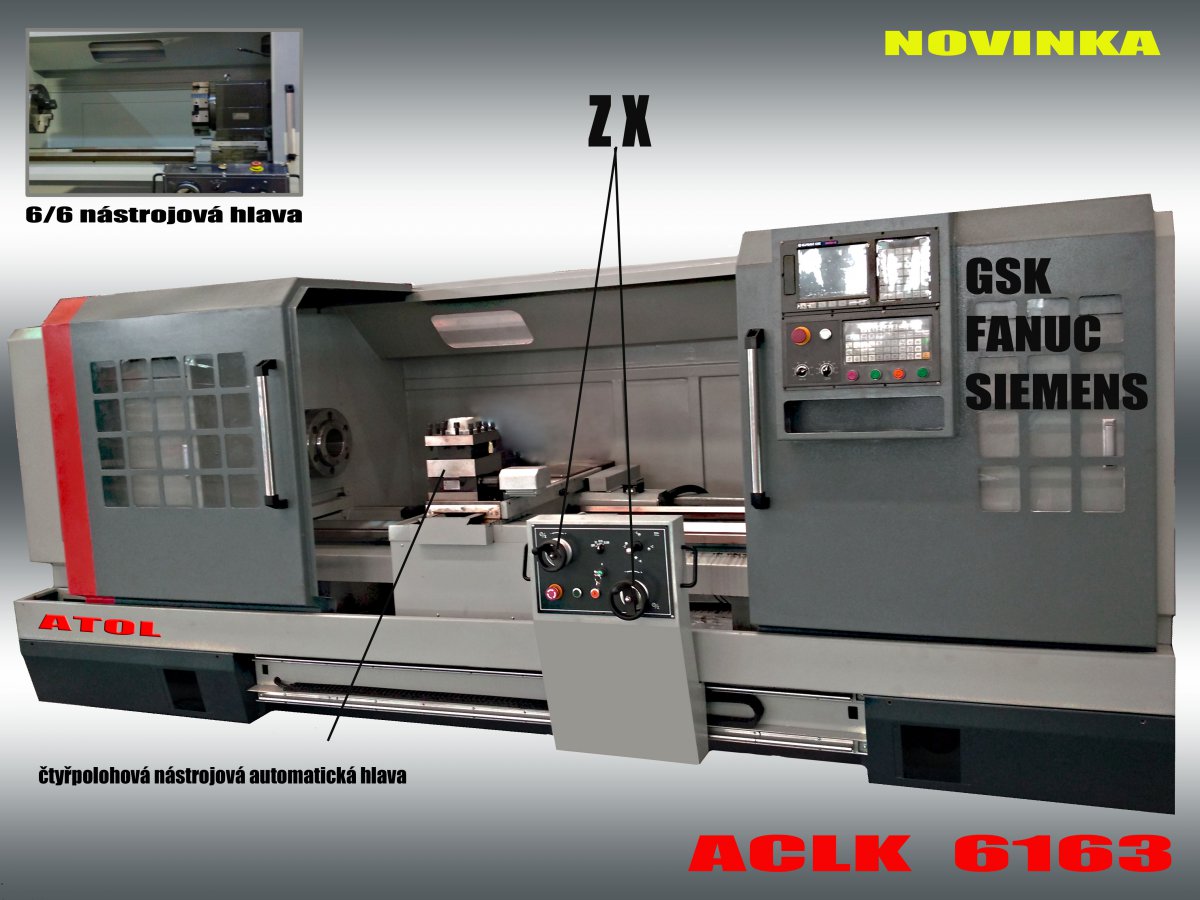

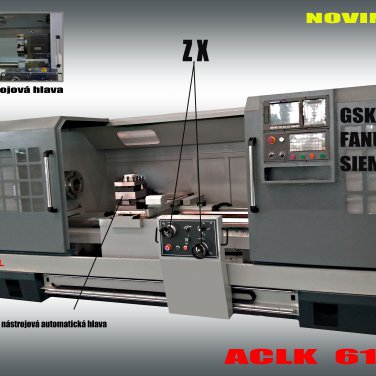

CNC lathe ACLK6163 Fanuc/Siemens

Bed lenght 2000mm
Cast-iron stand for rigidity and long term accuracy, servo drives Fanuc / Siemens, ball screws
Flat bed
Slide guiding of X and Y axes

Query

Standard version

Max. swing over bed	630mm
Max. swing over carriage	350mm
Bed width	550mm
Max. workpiece lenght	1000/1500/2000/3000mm
Spindle speed	3 steps(mechanical), stepless speed
Spindle bore	102mm
Spindle nose type	D11
Feeding speed	X: 430 mm, Z: 1000/1500/2000/3000 mm
Rapid feeding mm/min	X: 4000 / Z: 6000 mm/min
Positioning accurancy	X: 0,03mm, Z: 0,032 mm
Re-positioning accurancy	X: 0,012mm, Z: 0,013 mm
Tailstock sleeve diam.	100mm
Tailstock sleeve travel	250 mm
Electric head	4 or 6 positions
Tools size	32x32mm
Main motor	11kW
Weight	3900/4200/4500/5400kg
Overall dimensions	3200 (3700,4200,5200)x1820x1780mm
