CNC lathe ACLK6156 Fanuc / Siemens

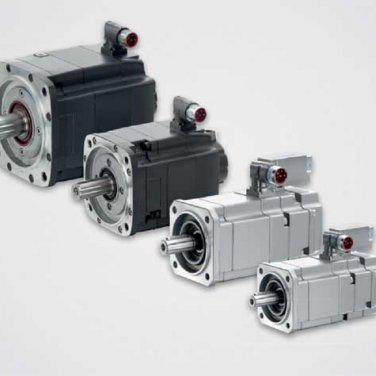

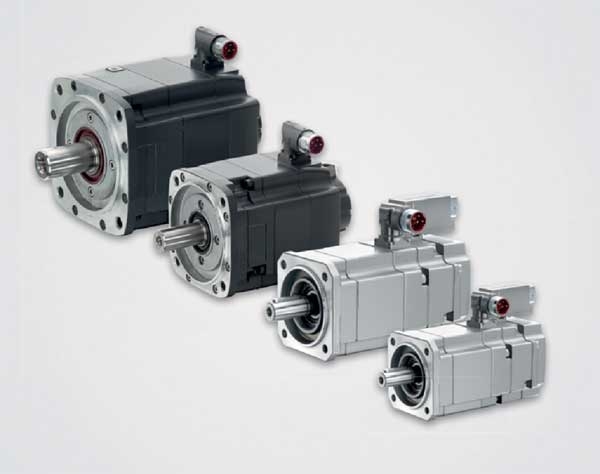

  • Cast-iron stand for rigidity and long term accuracy, servo drives Fanuc / Siemens, ball screws
  • flat bed
  • slide guiding of axes X and Y

Standard version

  • 3 steps of spindle speed
  • 3 jaws chuck diam.  250 mm

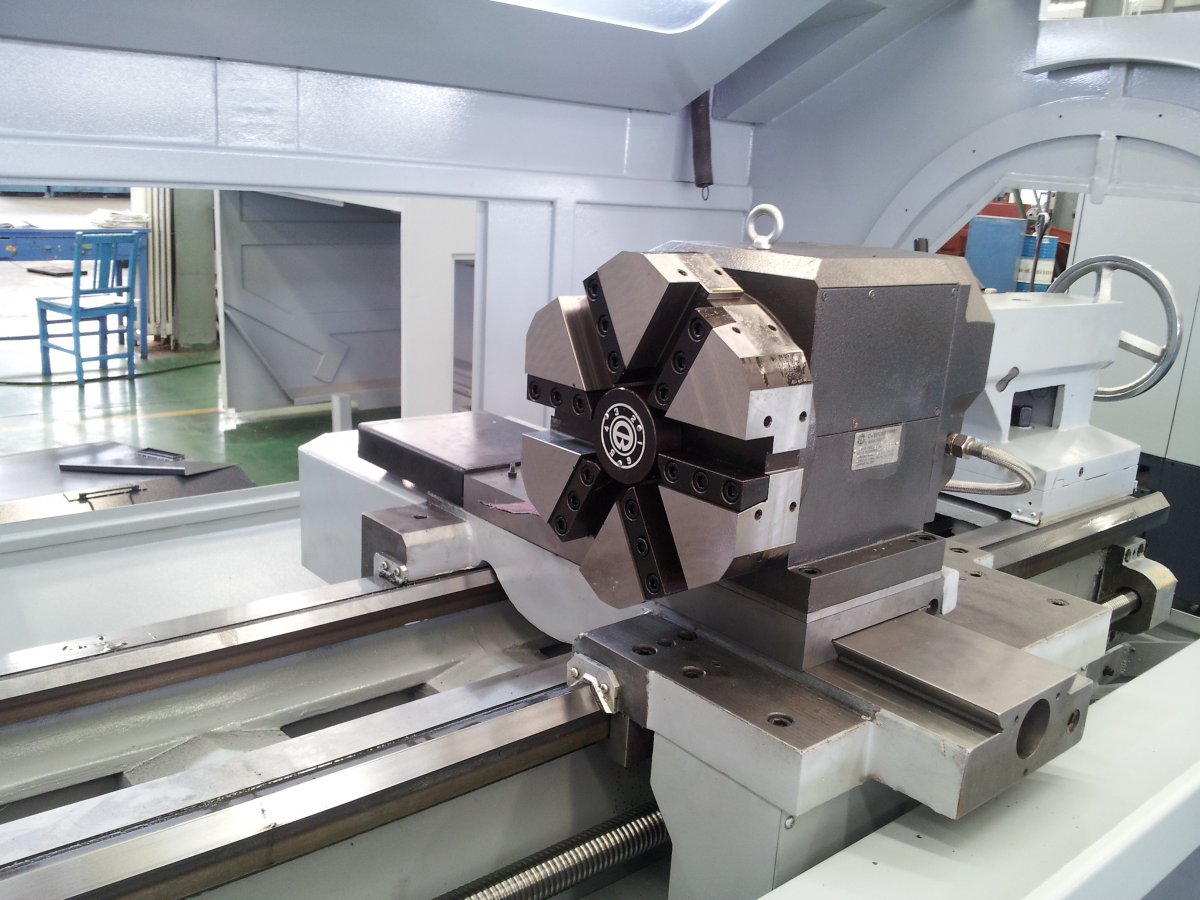

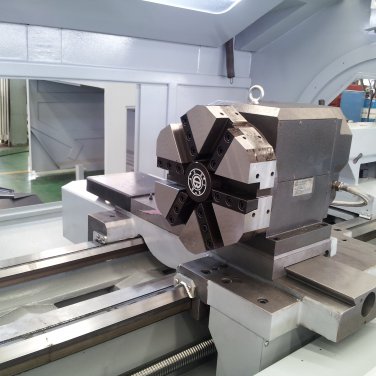

  • 4-position electric turret
  • manual tailstock

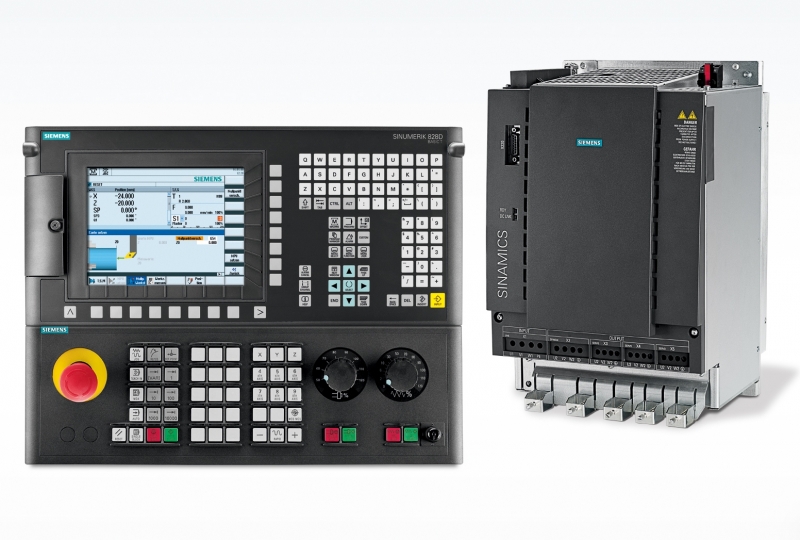

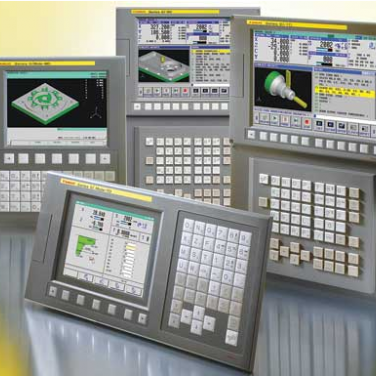

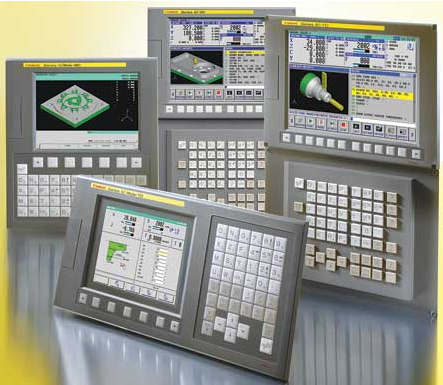

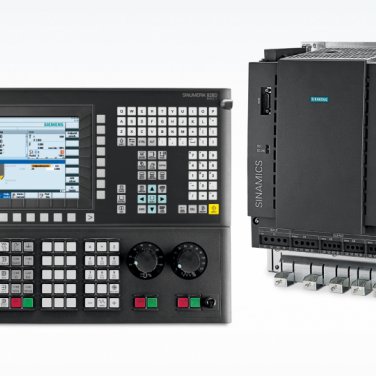

  • control system Fanuc 0i mate TD / Siemens 828D
 Max. swing over bed  560mm
 Max.swing over cross slide  330mm
 Max. diameter of turning  560mm
 Max. length of workpiece  1000mm
 Max. length of turning  1000mm
 Spindle bore  90mm
 Spindle nose type  A8
 Spindle speed rpm  V: 560-1600, S: 160-560, N: 50-160
 Rapid feeding mm/min  X: 6000 / Z: 6000
 Tool post type  Vertical 4-position
 Tool size  32x32mm
 Tool post travel  X: 310mm/ Z: 1000mm
 Main motor  7,5kW
 Weight  2600kg
 Overall dimensions  2950x1300x1700mm
