CNC lathe ACLK6150S Fanuc / Siemens

Home
CNC lathe Fanuc / Siemens
CNC lathe ACLK6150S Fanuc / Siemens

Cast-iron stand for rigidity and long term accuracy, servo drives Fanuc / Siemens, ball screws
slant bed
spindle drive Fanuc / Siemens

Query

Standard version

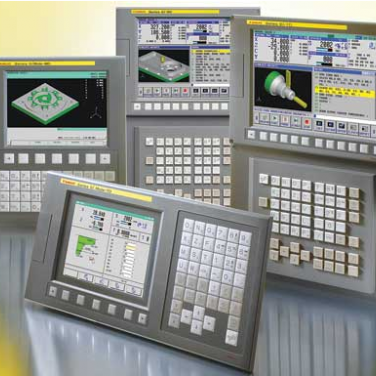

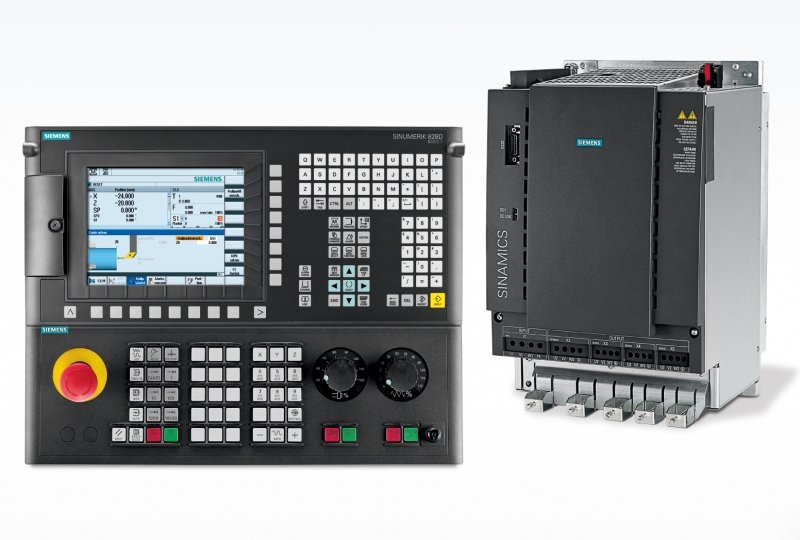

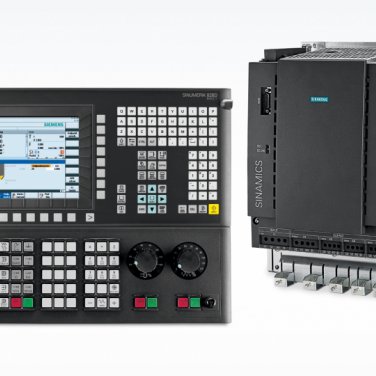

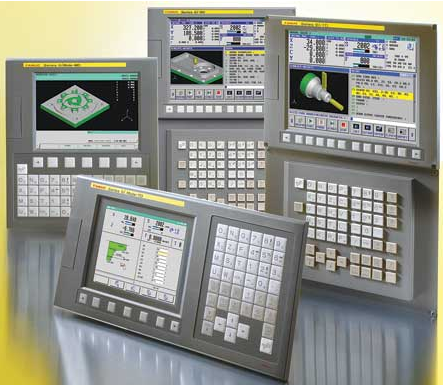

Fanuc 0i-mate TC CNC system / Siemens 828D
3 jaws hydraulic chuck
Linear guide of X and Z axes
turret with 10/10 positions (inner , outer)
hydrauli auto tailstock

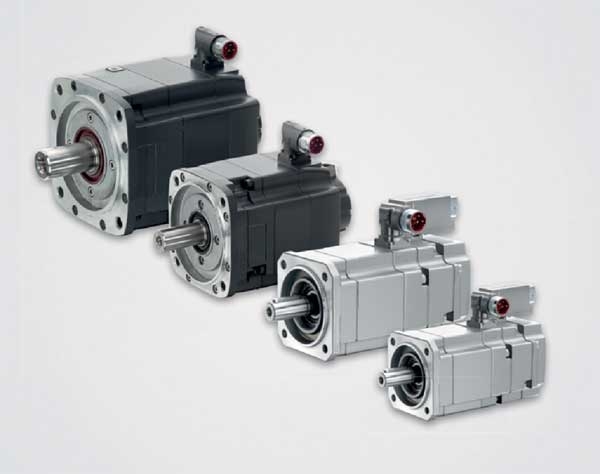

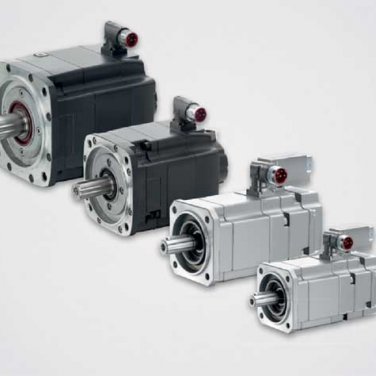

spindle servo drive Fanuc / Siemens
2 tool post

Options

collet chuck
probe (Renishaw)
workshop programming Fanuc (Manual Guide) / Siemens (ShopTurn)
auto chip conveyer (including bath for separation of emulsion)
inner and outer clamping parts for clamping of knives
auto power feeder
3 jaws hydraulic chuck

Technicial datas

Max. swing over bed	700 mm
Max. swing over carriage	380mm
Max. workpiece length	600mm
Travel of axes X	245mm
Travel of axes Z	600mm
Rapid feed X, Z	20/18 m/min
Hydraulic chuck	250mm
Tools nr.	12/12 pcs.
Main motor	18,5-22 kW
Max. spindle speed	4000 ot/min
Spindle bore	75 mm
External diameter tools	25 mm
Interior diameter tools	40 mm
Overall dimensions	3600x2000x1950 mm
Weight	7000 kg
