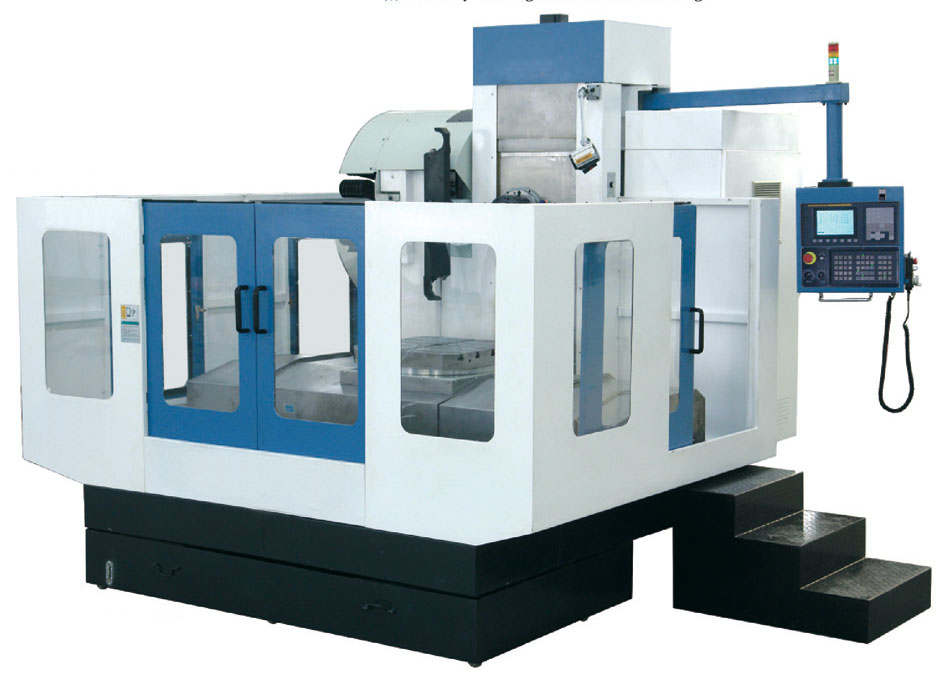

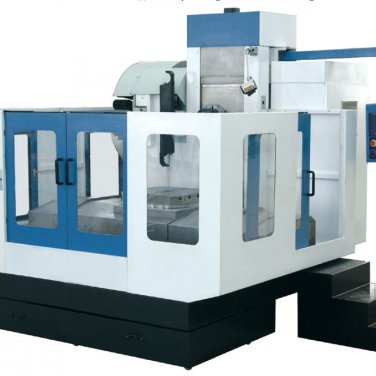

CNC horizontal machining center A6363 Fanuc / Siemens

  • Robust cast-iron stand for long term accuracy
  • umbrella type magazine A.T.C. (24 tools)
  • rotary table with robust guide , mini dividing 1°
  • Z axis with four line block guideway coated, precision scraped, X axis extra heavy duty linear guideway, Y axis block guideway.

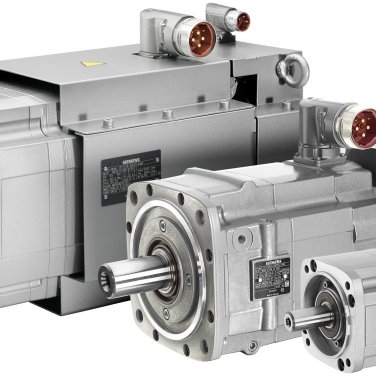

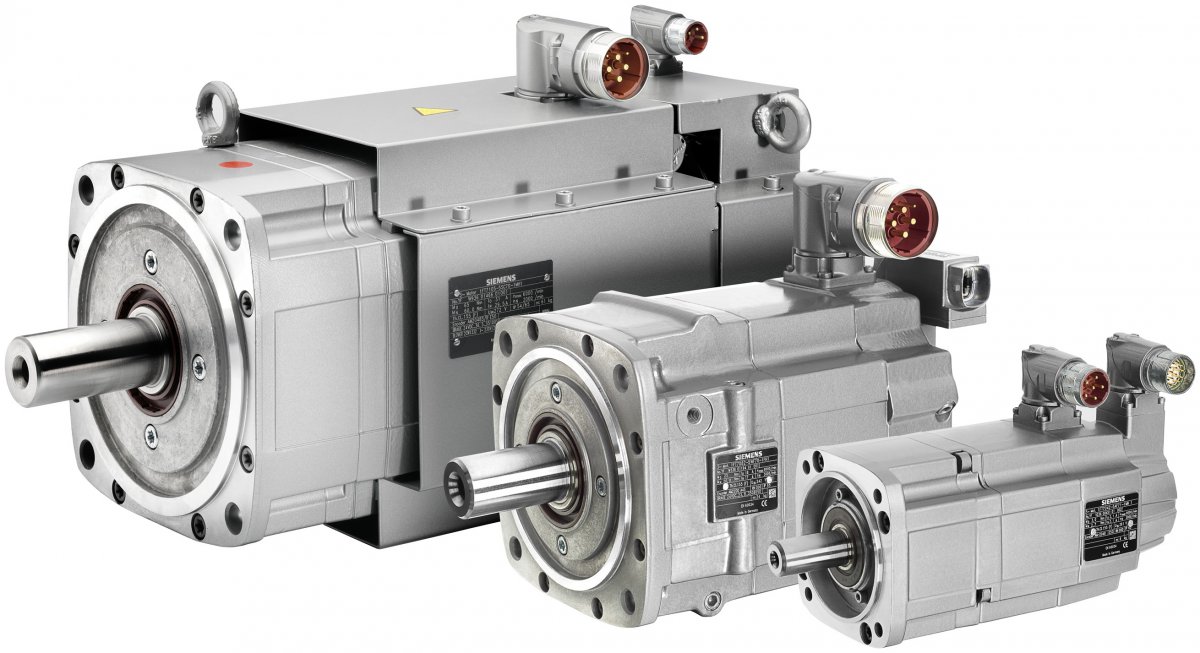

  • servo drive Fanuc / Siemens

Standard version

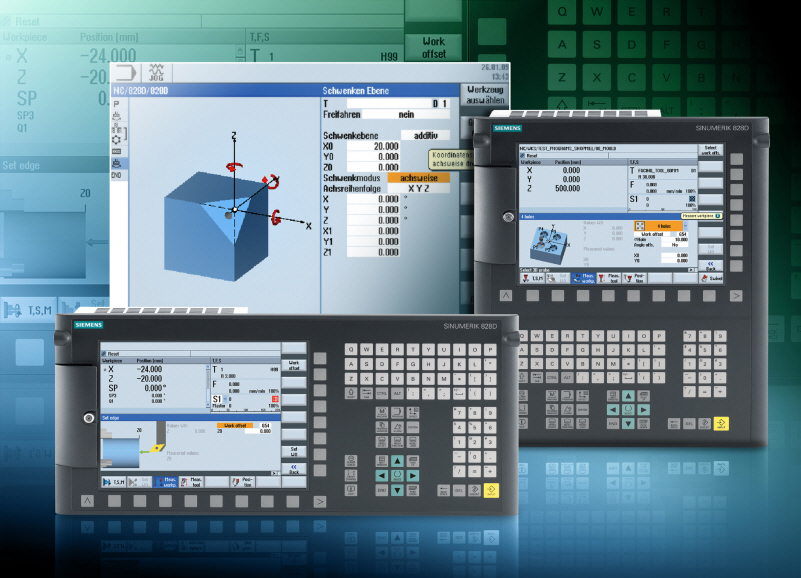

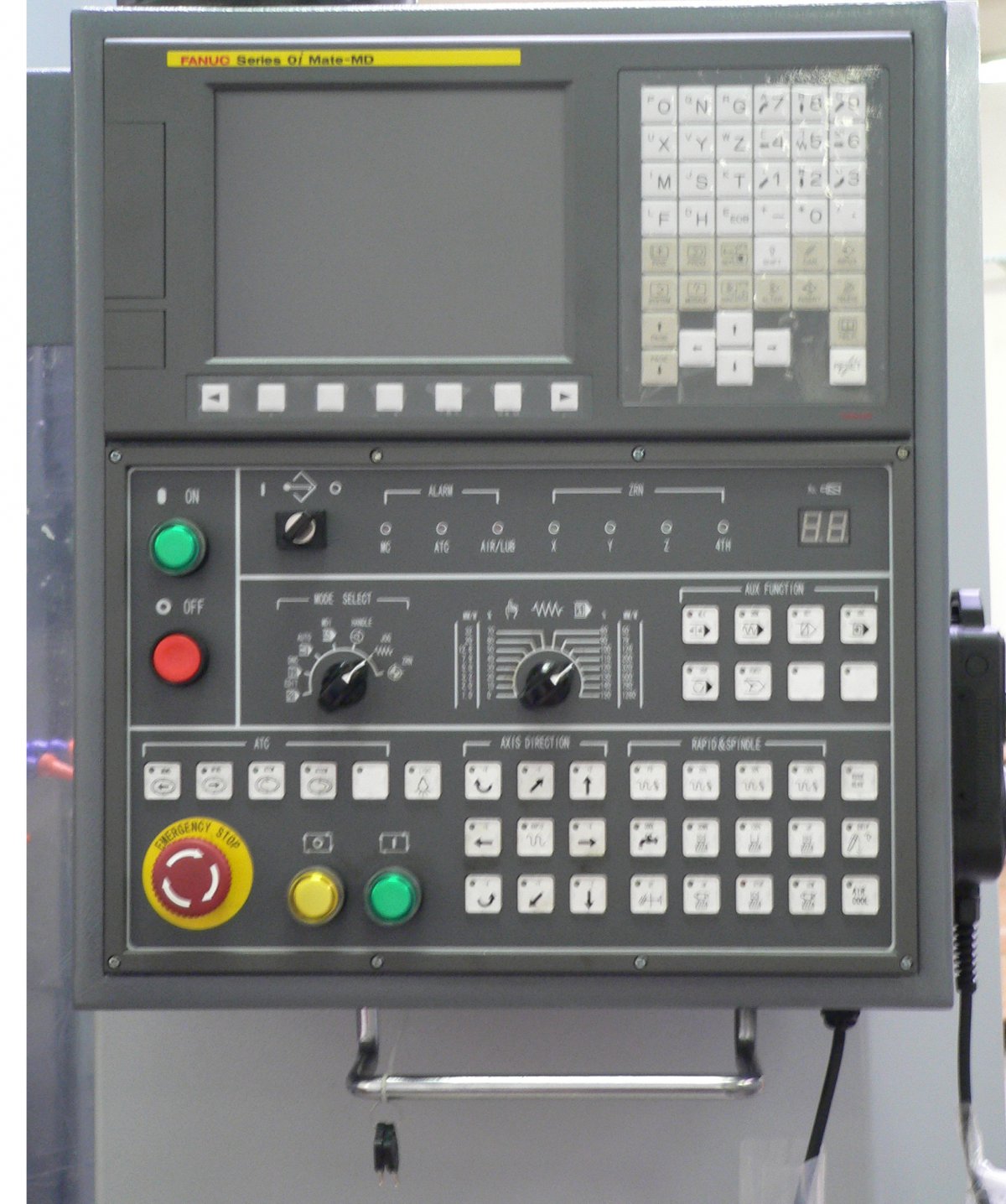

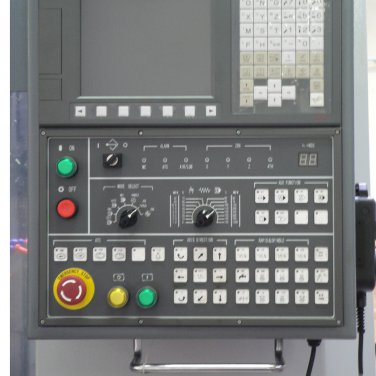

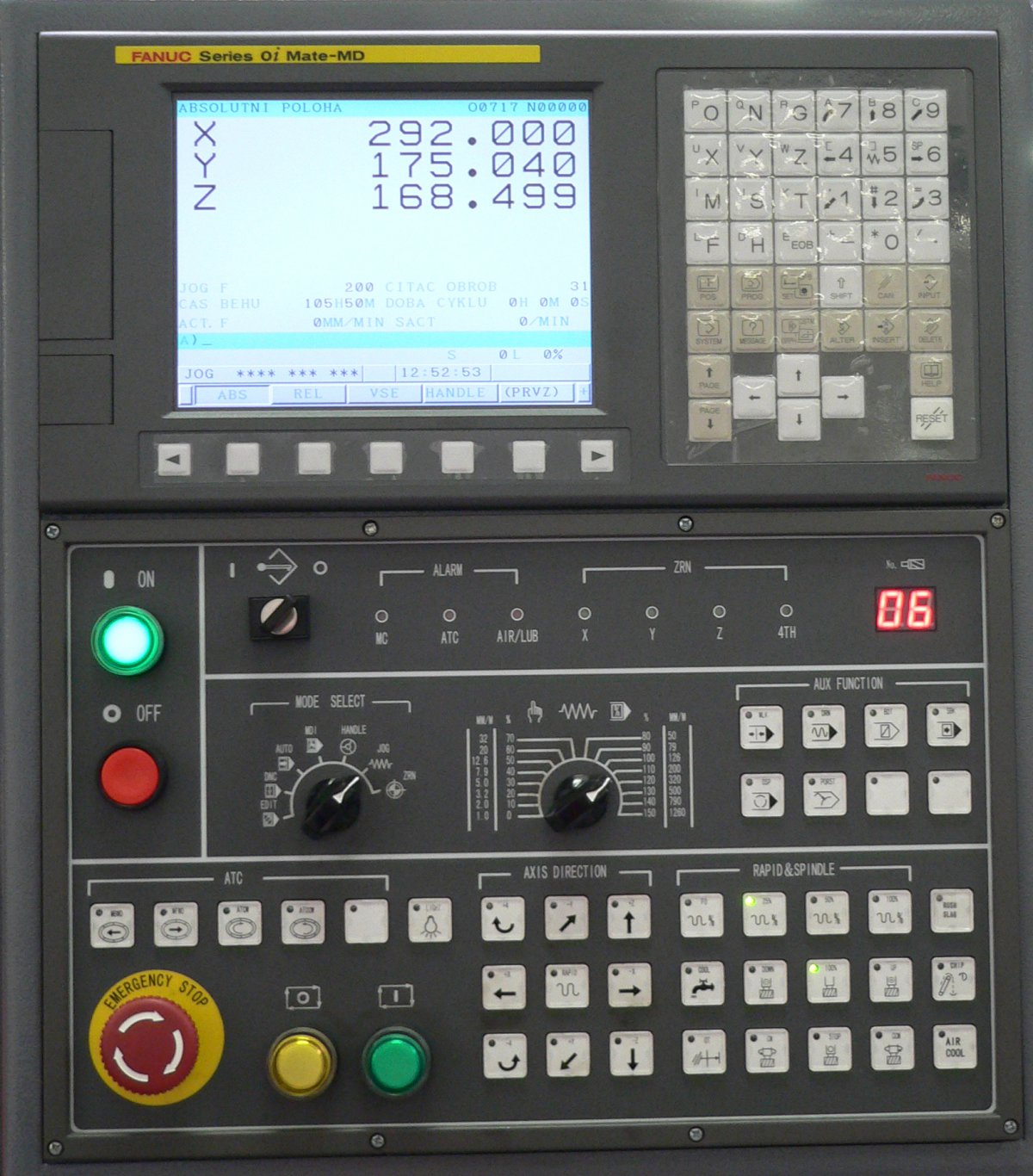

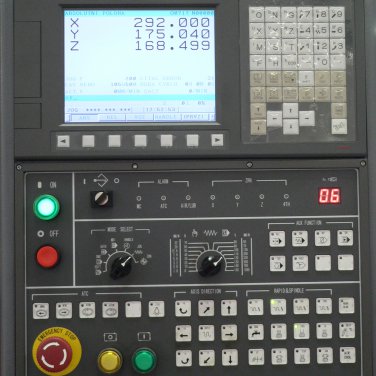

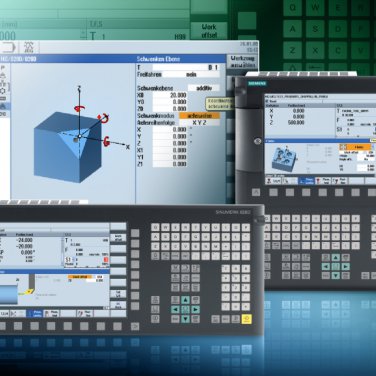

  • Fanuc 0i MateMD CNC system / Siemens 828D
  • Umbrella type magazine with 24 tool posts

Options

  • 4th rotary axes
  • 4-5th axes
  • tool probe(Renishaw)
  • workpiece probe(Renishaw)
  • workshop programming Fanuc (Manual Guide) / Siemens (ShopMill)
  • cooling via spindle hollow
  • chip conveyer
Travel of axes X 800 mm
Travel of axes Y 650 mm
Travel of axes Z 740 mm
Spindle nose to table 220-970 mm
Rapid feeding X, Y 20000 mm/min
Rapid feeding Z 15000 mm/min
Feeding speed 1-5000 mm/min
Table size 630 x 630 mm
Max. loading capacity of table 1000 kg
Guide type slide
T-slots nr. / width / distance of table 5/22/125 mm
Max. spindle speed 2400 rpm
Spindle power 11/15 kW
Spindle taper BT50
Tool magazine capacity 24 pcs
Possitioning accuracy 0,015 mm
Re-possitioning accuracy 0,007 mm
Overall dimensions 3200 x 3500x 2700 mm
Weight 9500 kg
